Look at things differently.

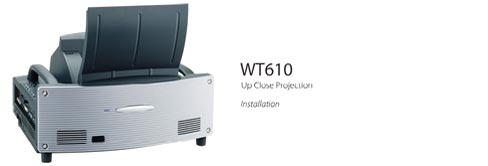

Able to project 100" diagonal images from a mere 26" away from the screen, the WT610 maximizes precious space in commercial environments with ultimate versatility. In tight spaces the WT610's wireless networking capabilities give you all of the flexibility without cables. Enhanced color depth and a 3500:1 contrast ratio allow display graphics to deliver their message with power and beauty.
- 2000 ANSI lumens
- XGA 1024x768 native resolution
- Extreme short throw
- Networking capable
- Ceiling mountable
Product Specifications
| Key Points |
Extreme short throw
Networking capable
Ceiling mountable |
|
| Unique Features |
100" image size at less than 26" throw
Short depth rear projection capable
Lenless technology |
|
| Optical |
|
|
| Display Technology |
.7 in DLP |
|
| Resolution |
|
|
| Native |
XGA 1024x768 |
|
| Maximum |
UXGA 1600x1200 |
|
| Light Output (lumens) |
2000 normal/1500 eco |
|
| Contrast Ratio |
3500:1 |
|
| Lamp Type |
275W NSH |
|
| Lamp Life (up to) |
2000 hours normal, 4000 hours eco |
|
| Screen Size (diagonal) |
40-100 in, 1016-2540 mm |
|
| Throw Ratio |
Throw Ratio |
|
| Projection Distance |
2.52 to 25.94 in, 64 to 659 mm |
|
| Projector Angle |
55° |
|
| Lens |
|
|
| Zoom |
- |
|
| Focus |
Automatic |
|
| F-number, f-number |
- |
|
| Shift |
- |
|
| Keystone Correction |
+/- 5° vertical, +/- 5° horizontal |
|
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz (non interlaced) |
|
| Vertical |
48 to 120 Hz |
|
| Supported Video Standards |
NTSC, 4.43 NTSC, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576p, 720p, 1080i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
15-pin mini D-sub |
|
| RGB 2 (analog) |
DVI-I |
|
| RGB 3 (digital) |
- |
|
| Video 1 |
Composite RCA x 1 |
|
| Video 2 |
S-Video 4-Pin DIN |
|
| Video 3 |
- |
|
| HD Video 1 |
- |
|
| HD Video 2 |
- |
|
| Audio |
1 set RCA stereo, 2 stereo mini |
|
| Monitor out |
RGB (analog) 15-pin mini D-sub |
|
| Audio out |
1 stereo mini (variable audio output) |
|
| Audio |
Built-in speakers 1W x 2 |
|
| External Control |
RS232, LAN, IR, USB |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
|
| Networking |
Wireless, Wired |
|
| Electrical |
|
|
| Power Req. |
100-120VAC/200-240VAC, 50/60Hz |
|
| Input Current |
3.9A (100-120VAC), 1.7A (200-240VAC) |
|
| Power Consumption |
370W |
|
| Mechanical |
|
|
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
|
| Dimensions (WxDxH) |
14.96x12.32x12.32 in, 380x313x313 mm |
|
| Net Weight |
14.1 lbs, 6.4 kg |
|
| Fan Noise |
37 dB |
|
| Regulations |
USA UL 1950 FCC Class B, Canada CSA950 (C-UL), |
|
| Environmental |
|
|
| Operational Temp. |
41° to 95°F / 0° to 35°C |
|
| Humidity |
20-80% (non-condensing) |
|
| Storage |
14° to 122°F / -10° to 50°C |
|
| Warranty |
Owners receive a 2-year limited parts and labor warranty. RepairCare™ is provided during the first year of coverage for registered owners. RepairCare provides the original owner with 3-business day repair and return of the projector. When used under normal operating conditions, the lamp is covered for 90 days or 500 hours, whichever comes first. |
|
| Additional Features |
|
|
| SquareShot™ |
No |
|
| VORTEX™ Technology Plus |
Breakthrough image processing technology improves white level, color accuracy, dynamic range and varying levels of black in an image. |
|
| Autosense™ |
Automatically syncs with any computer signal and features one touch image optimization. |
|
| SweetVision II™ |
No |
|
| 3D Reform™ |
Provides the ability to square the image by adjusting 3D Reform horizontally, vertically or diagonally when the projector can not be placed parallel or perpendicular to the screen. |
|
| Automatic keystone correction |
Ensures an instantly square image is projected even when the projector is set up at a steep offset angle to the screen. |
|
| Built-in Wall Color Correction |
Presets provide for adaptive color tone correction to display properly on non-white surfaces. |
|
| Advanced AccuBlend™ |
Ensures detailed images when non-native resolution sources are connected to the projector. |
|
| Kensington Lock Slot |
Enables security cable to be attached to projector. |
|
| Image Magnification |
64-step image magnification with location control |
|
| Sleep Timer |
Count down timer can be set to automatically turn off the projector |
|
| Eco-Mode™ Technology |
Extends lamp life, lowers audible noise and reduces total cost |
|
| Discreet Source Keys |
Projector and remote feature direct access buttons for source selection |
|
| Computer free presentations |
Insert a USB drive or CompactFlash memory card directly into the projector and change images using the wireless remote control provided with the projector. |
|
| High speed wireless |
IEEE802.11g and improved circuitry provide wireless communication up to 3 times faster than available from previous models. |
|
| Direct Power Off |
|
|
| In the Box |
Users manual, wired/wireless addressable remote control with laser pointer, power cable, remote cable, signal cable, quick connect guide, registration card, application CD-ROM |
|
Compatibility
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz (non interlaced) |
|
| Vertical |
48 to 120 Hz |
|
| Supported Video Standards |
NTSC, 4.43 NTSC, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576p, 720p, 1080i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA |
|
| Macintosh Compatibility |
Yes |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
|
Warranty Information
Owners receive a 2-year limited parts and labor warranty. RepairCare™ is provided during the first year of coverage for registered owners. RepairCare provides the original owner with 3-business day repair and return of the projector. When used under normal operating conditions, the lamp is covered for 90 days or 500 hours, whichever comes first. |
