Easy to learn. Easy to use. Easy to own.

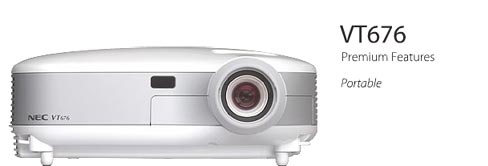

Start projecting in 9 seconds with the VT676. This premium projector is full of power and features. You'll achieve high resolution images and superior brightness all in a portable chassis. The extensive connections allow you to hook up a multitude of sources.
- 2500 ANSI lumens
- XGA 1024x768 native resolution
- Automatic keystone correction
- Rapid start up and shut down
- Expanded Connectivity
Product Specifications
| Key Points |
XGA native resolution
Bright Expanded Connectivity |
|
| Unique Features |
Automatic keystone
Nearly silent @ 30 dB
Rapid startup/shutdown - Up and running in 9 seconds |
|
| Optical |
|
|
| Display Technology |
.7 in LCD |
|
| Resolution |
|
|
| Native |
XGA 1024x768 |
|
| Maximum |
UXGA 1600x1200 |
|
| Light Output (lumens) |
2500 normal/1900 eco |
|
| Contrast Ratio |
400:1 |
|
| Lamp Type |
200W UHP |
|
| Lamp Life (up to) |
2000 hours normal, 3000 hours eco |
|
| Screen Size (diagonal) |
21-300 in, 533-7620 mm |
|
| Throw Ratio |
1.5 - 1.8 |
|
| Projection Distance |
2.4 to 35.89 ft, 0.73 to 10.9 m |
|
| Projector Angle |
9.5 - 9.9° tele/11.5 - 12° wide |
|
| Lens |
|
|
| Zoom |
Manual |
|
| Focus |
Manual |
|
| F-number, f-number |
F=1.7-2.0, f=21.6-25.9 mm |
|
| Shift |
- |
|
| Keystone Correction |
Automatic or Manual Keystone Correction +/- 30° vertical |
|
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz (non interlaced) |
|
| Vertical |
50 to 120 Hz |
|
| Supported Video Standards |
NTSC, 4.43 NTSC, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576p, 720p, 1080i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
15-pin mini D-sub |
|
| RGB 2 (analog) |
15-pin mini D-sub |
|
| RGB 3 (digital) |
- |
|
| Video 1 |
- |
|
| Video 2 |
- |
|
| Video 3 |
- |
|
| HD Video 1 |
- |
|
| HD Video 2 |
- |
|
| Audio |
2 sets RCA stereo, 1 stereo mini |
|
| Monitor out |
RGB (analog) 15-pin mini D-sub |
|
| Audio out |
1 stereo mini (variable audio output) |
|
| Audio |
Built-in speakers 1 W monaural |
|
| External Control |
RS232, IR |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
|
| Networking |
None |
|
| Electrical |
|
|
| Power Req. |
100-120VAC/200-240VAC, 50/60Hz |
|
| Input Current |
2.7A (100-120VAC), 1.4A (200-240VAC) |
|
| Power Consumption |
250W normal, 200W eco |
|
| Mechanical |
|
|
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
|
| Dimensions (WxDxH) |
11.6x3.7x10.2 in , 294x93x260 mm |
|
| Net Weight |
7.0lbs, 3.0kg (approx) |
|
| Fan Noise |
35 dB normal/30 dB eco |
|
| Regulations |
USA UL 1950 FCC Class B, Canada CSA950 (C-UL) |
|
| Environmental |
|
|
| Operational Temp. |
41° to 95°F / 5° to 35°C |
|
| Humidity |
20-80% (non-condensing) |
|
| Storage |
14° to 122°F / -10° to 50°C |
|
| Warranty |
Registered owners receive a 2-year limited, parts and labor warranty including InstaCare. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange. The lamp when used under normal operating conditions is covered for 500 hours or 3 months, whichever comes first. |
|
| Additional Features |
|
|
| SquareShot™ |
Instantly project a square image even when the projector is set up at a steep offset angle to the screen. |
|
| VORTEX™ Technology Plus |
Breakthrough image processing technology improves white level, color accuracy, dynamic range and varying levels of black in an image. |
|
| Autosense™ |
Automatically syncs with any computer signal and features one touch image optimization. |
|
| SweetVision II™ |
No |
|
| 3D Reform™ |
No |
|
| Automatic keystone correction |
No |
|
| Built-in Wall Color Correction |
No |
|
| Advanced AccuBlend™ |
Ensures detailed images when non-native resolution sources are connected to the projector. |
|
| Kensington Lock Slot |
Enables security cable to be attached to projector. |
|
| Image Magnification |
64-step image magnification with location control |
|
| Sleep Timer |
Count down timer can be set to automatically turn off the projector |
|
| Eco-Mode™ Technology |
Extends lamp life, lowers audible noise and reduces total cost |
|
| Discreet Source Keys |
Projector and remote feature direct access buttons for source selection |
|
| Computer free presentations |
No |
|
| High speed wireless |
No |
|
| Direct Power Off |
|
|
| In the Box |
lens cap, power cord, RGB signal cable, user's manual on
CD-ROM, carrying case, remote control, battery, quick start guide, product registration card |
|
Compatibility
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz (non interlaced) |
|
| Vertical |
50 to 120 Hz |
|
| Supported Video Standards |
NTSC, 4.43 NTSC, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576p, 720p, 1080i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA |
|
| Macintosh Compatibility |
Yes |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
|
Warranty Information
Registered owners receive a 2-year limited, parts and labor warranty including InstaCare. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange. The lamp when used under normal operating conditions is covered for 500 hours or 3 months, whichever comes first. |
