Everything should be this easy

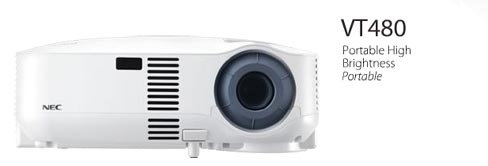

The VT480 projector is bright enough for ambient light conditions and can be set up in a flash. With a host of unique technologies and enhanced connectivity, the VT480 makes your presentation experience easy.
- 2000 ANSI lumens
- SVGA 800x600 native resolution
- Enhanced connectivity
- Remote with mouse control
Produtct Specifications
|
Rapid startup and cool down
Enhanced connectivity
Quiet operation |
|
| Unique Features |
Variable audio out
Dual computer inputs
IR receiver for mouse control |
|
| Optical |
|
|
| Display Technology |
0.6 in LCD |
|
| Resolution |
|
|
| Native |
SVGA 800 x 600 |
|
| Maximum |
UXGA 1600x1200 |
|
| Light Output (lumens) |
2000 normal/1600 eco |
|
| Contrast Ratio |
600:1 |
|
| Lamp Type |
200W DC |
|
| Lamp Life (up to) |
2000 hours normal/3000 hours eco |
|
| Screen Size (diagonal) |
21-300 in, 533-7620 mm |
|
| Throw Ratio |
1.5 - 1.8 |
|
| Projection Distance |
2.3 to 36.4 ft, 0.7 to 11.1m |
|
| Projector Angle |
8.3° to 8.6° tele, 9.9° to 10.3° wide |
|
| Lens |
|
|
| Zoom |
Manual |
|
| Focus |
Manual |
|
| F-number, f-number |
F=1.7 to 2.07mm, f=18.9 to 22.7mm |
|
| Shift |
- |
|
| Keystone Correction |
Manual +/- 30° |
|
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz |
|
| Vertical |
50 to 120 Hz |
|
| Supported Video Standards |
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
1080i, 720p, 576p, 576i, 480p, 480i,Y/Cb/Cr component (with optional adapter - ADP-CV1) |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+, UXGA |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
15 pin |
|
| RGB 2 (analog) |
15 pin |
|
| RGB 3 (digital) |
- |
|
| Video 1 |
RCA |
|
| Video 2 |
S-Video |
|
| Video 3 |
- |
|
| HD Video 1 |
- |
|
| HD Video 2 |
- |
|
| Audio |
1 set RCA, 1 mini |
|
| Monitor out |
yes |
|
| Audio out |
yes |
|
| Audio |
1W monaural |
|
| External Control |
RS232, IR |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
|
| Networking |
None |
|
| Electrical |
|
|
| Power Req. |
100 - 240VAC, 50/60Hz |
|
| Input Current |
3.1/1.3A |
|
| Power Consumption |
280W normal/221W eco |
|
| Mechanical |
|
|
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
|
| Dimensions (WxDxH) |
12.2x10.2x4.5 in, 309x258x112 mm |
|
| Net Weight |
6.4 lbs, 2.9 kg |
|
| Fan Noise |
35 dB normal/29 dB eco |
|
| Regulations |
USA UL 1950 FCC Class B, Canada CSA950 (C-UL) |
|
| Environmental |
|
|
| Operational Temp. |
41° to 104°F / 5° to 40°F |
|
| Humidity |
20-80% (non-condensing) |
|
| Storage |
14° to 122°F / -10° to 50°C |
|
| Warranty |
Registered owners receive a 3-year limited warranty including InstaCare. Includes three year limited warranty on parts and one year limited warranty on labor. The lamp is covered for one year or 500 hours - whatever comes first. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange. |
|
| Additional Features |
|
|
| SquareShotT |
Instantly project a square image even when the projector is set up at a steep offset angle to the screen. |
|
| VORTEXT Technology Plus |
Breakthrough image processing technology improves white level, color accuracy, dynamic range and varying levels of black in an image. |
|
| AutosenseT |
Automatically syncs with any computer signal and features one touch image optimization. |
|
| SweetVision IIT |
No |
|
| 3D ReformT |
No |
|
| Automatic keystone correction |
No |
|
| Built-in Wall Color Correction |
Presets provide for adaptive color tone correction to display properly on non-white surfaces. |
|
| Advanced AccuBlendT |
Ensures detailed images when non-native resolution sources are connected to the projector. |
|
| Kensington Lock Slot |
Enables security cable to be attached to projector. |
|
| Image Magnification |
64-step image magnification with location control |
|
| Sleep Timer |
Count down timer can be set to automatically turn off the projector |
|
| Eco-ModeT Technology |
Extends lamp life, lowers audible noise and reduces total cost |
|
| Discreet Source Keys |
No |
|
| Computer free presentations |
No |
|
| High speed wireless |
No |
|
| Direct Power Off |
|
|
| In the Box |
carrying case, remote, mouse receiver, control, battteries, handle, power cord, RGB signal cable, lens cap, user's manual on CD-ROM, quick start guide, product registration card |
Compatibility
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz |
|
| Vertical |
50 to 120 Hz |
|
| Supported Video Standards |
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
1080i, 720p, 576p, 576i, 480p, 480i,Y/Cb/Cr component (with optional adapter - ADP-CV1) |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+, UXGA |
|
| Macintosh Compatibility |
Yes |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
Warranty Information
Registered owners receive a 3-year limited warranty including InstaCare. Includes three year limited warranty on parts and one year limited warranty on labor. The lamp is covered for one year or 500 hours - whatever comes first. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange. |
