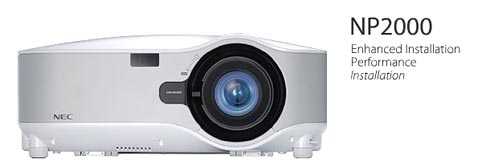

The NP2000 provides bright and clear images with 4000 lumens, vertical and manual lens shift allowing flexible projector placement and 5 optional bayonet lenses making it the perfect choice for demanding installation projects. The NP2000 provides a suite of networking technologies and asset management features making it the perfect choice for any projector installation.
| Key Points |
Vertical and horizontal lens shift and a complete line of optional bayonet style lenses(5)
Wired and wireless network projector
Advanced video processing with Contrast Enhancement
4000 Lumens |
|
| Unique Features |
Remote diagnostics
3D reform with geometry correction
Lamp saver technologies with heat sensor and reserve power to keep cooling fan running even after disconnected from power. |
|
| Optical |
|
|
| Display Technology |
0.8 in LCD with MLA |
|
| Resolution |
|
|
| Native |
XGA 1024 x 768 |
|
| Maximum |
UXGA 1600x1200 |
|
| Light Output (lumens) |
4000 normal |
|
| Contrast Ratio |
800:1 |
|
| Lamp Type |
300W AC |
|
| Lamp Life (up to) |
2000 hours normal/3000 hours eco |
|
| Screen Size (diagonal) |
25-500 in, 635-12700 mm |
|
| Throw Ratio |
1.5 - 2.0 |
|
| Projection Distance |
2.5 to 68.5 ft, .74m to 20.9m |
|
| Projector Angle |
10.3 to 10.8° tele, 13.7 to 14.5° wide |
|
| Lens |
|
|
| Zoom |
1 to 1.33 |
|
| Focus |
manual |
|
| F-number, f-number |
F=1.7 to 2.2, f=24.4 to 32.5mm |
|
| Shift |
Manual, 50 % Vertical, 10% Horizontal |
|
| Keystone Correction |
Vertical +/-40 degrees, horizontal +/-35 degrees |
|
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz |
|
| Vertical |
48 to 120 Hz |
|
| Supported Video Standards |
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
1080i, 720p, 576p, 576i, 480p, 480i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+, UXGA |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
15 pin |
|
| RGB 2 (analog) |
5 BNC |
|
| RGB 3 (digital) |
DVI-D w/ HDCP |
|
| Video 1 |
RCA |
|
| Video 2 |
S-Video |
|
| Video 3 |
Component |
|
| HD Video 1 |
- |
|
| HD Video 2 |
- |
|
| Audio |
(3) L/R RCA, 3 mini stereo |
|
| Monitor out |
yes |
|
| Audio out |
mini VAO |
|
| Audio |
2 x 5W Stereo Speakers |
|
| External Control |
RS232, LAN, IR |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
|
| Networking |
Wired LAN using integrated RJ45, 802.11b/g wireless with optional card |
|
| Electrical |
|
|
| Power Req. |
100 - 240VAC, 50/60Hz |
|
| Input Current |
4.6A |
|
| Power Consumption |
435W |
|
| Mechanical |
|
|
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
|
| Dimensions (WxDxH) |
15.7 x 14.1 x 5.9 in, 399 x 358 x 150 mm |
|
| Net Weight |
16 lbs, 7.3kg |
|
| Fan Noise |
35 dB normal/30 dB eco-mode |
|
| Regulations |
USA UL 1950 FCC Class B, Canada CSA950 (C-UL), NOM |
|
| Environmental |
|
|
| Operational Temp. |
41° to 104°F / 5° to 40°C |
|
| Humidity |
20-80% (non-condensing) |
|
| Storage |
14° to 122°F / -10° to 50°C |
|
| Warranty |
Registered owers receive a 3-year limited warranty including InstaCare. Includes three year limited warranty on parts and one year limited warranty on labor. The lamp is covered for one year or 500 hours - whatever comes first. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange. |
|
| Additional Features |
|
|
| SquareShot™ |
- |
|
| VORTEX™ Technology Plus |
Breakthrough image processing technology improves white level, color accuracy, dynamic range and varying levels of black in an image. |
|
| Autosense™ |
Automatically syncs with any computer signal and features one touch image optimization. |
|
| SweetVision II™ |
- |
|
| 3D Reform™ |
Provides the ability to square the image by adjusting 3D Reform horizontally, vertically or diagonally when the projector can not be placed parallel or perpendicular to the screen. |
|
| Automatic keystone correction |
Ensures a square image can be projected even when the projector is set up at a steep offset angle to the screen. |
|
| Built-in Wall Color Correction |
Presets provide for adaptive color tone correction to display properly on non-white surfaces. |
|
| Advanced AccuBlend™ |
Ensures detailed images when non-native resolution sources are connected to the projector. |
|
| Kensington Lock Slot |
Enables security cable to be attached to projector. |
|
| Image Magnification |
64-step image magnification with location control |
|
| Sleep Timer |
Count down timer can be set to automatically turn off the projector |
|
| Eco-Mode™ Technology |
Extends lamp life, lowers audible noise and reduces total cost |
|
| Discreet Source Keys |
Projector and remote feature direct access buttons for source selection |
|
| Computer free presentations |
Insert a USB drive or CompactFlash memory card directly into the projector and change images using the wireless remote control provided with the projector. |
|
| High speed wireless |
IEEE802.11b/g and improved circuitry provide wireless communication up to 3 times faster than available from previous models. |
|
| Direct Power Off |
Protects the lamp when the projector is accidentally unplugged or the power strip is switched off. Enables the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on until properly cooled. |
|
| In the Box |
Remote control, remote control cable, battteries, power cord, RGB signal cable, lens cap, user's manual on CD-ROM, product registration card |
|
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz |
|
| Vertical |
48 to 120 Hz |
|
| Supported Video Standards |
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
1080i, 720p, 576p, 576i, 480p, 480i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+, UXGA |
|
| Macintosh Compatibility |
Yes |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
|
Registered owers receive a 3-year limited warranty including InstaCare. Includes three year limited warranty on parts and one year limited warranty on labor. The lamp is covered for one year or 500 hours - whatever comes first. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange.
