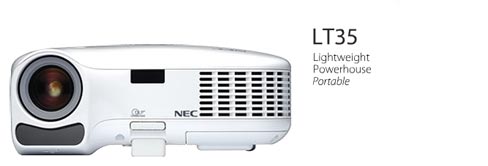

World's first automatic projector
As the world's first automatic projector sporting a footprint smaller than a sheet of paper, the LT35 is bright, powerful and packed with technological innovations way ahead of its time. This little powerhouse does everything for automatically including start-up, focus, keystone correction and cool down. It's certain to help make your presentation a success.
- 3000 ANSI lumens
- XGA 1024x768 native resolution
- World's first automatic projector
- Quick set up and cool down
- Automatic focus and keystone correction
Product Specifications
| Key Points |
Automatic focus
Quick set up and cool down
Automatic keystone correction |
|
| Unique Features |
Advanced video processing
Lamp saver technology - built-in heat sensor
Direct power off |
|
| Optical |
|
|
| Display Technology |
0.7 in DLP |
|
| Resolution |
|
|
| Native |
XGA 1024 x 768 |
|
| Maximum |
SXGA+ 1400x1050 |
|
| Light Output (lumens) |
3000 normal, 2300 eco |
|
| Contrast Ratio |
1600:1 |
|
| Lamp Type |
220W AC |
|
| Lamp Life (up to) |
2000 hours normal, 2500 hours eco |
|
| Screen Size (diagonal) |
30-300 in, 762-7620 mm |
|
| Throw Ratio |
1.8 - 2.2 |
|
| Projection Distance |
3.51 to 43.6 ft, 1.07 to 13.3m |
|
| Projector Angle |
9.7 to 10° tele/11.6 to 12.1° wide |
|
| Lens |
|
|
| Zoom |
Manual |
|
| Focus |
Automatic/manual |
|
| F-number, f-number |
F=2.4 to 2.6 mm, f=25.7 to 30.8mm |
|
| Shift |
- |
|
| Keystone Correction |
Automatic +/- 16° |
|
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz |
|
| Vertical |
50 to 85 Hz |
|
| Supported Video Standards |
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
1080i, 720p, 576p, 576i, 480i, 480p,Y/Cb/Cr component (with optional adapter – ADP-CV1) |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+ |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
15 pin |
|
| RGB 2 (analog) |
- |
|
| RGB 3 (digital) |
- |
|
| Video 1 |
RCA |
|
| Video 2 |
S-Video |
|
| Video 3 |
- |
|
| HD Video 1 |
- |
|
| HD Video 2 |
- |
|
| Audio |
1 mini |
|
| Monitor out |
- |
|
| Audio out |
- |
|
| Audio |
1W monaural |
|
| External Control |
RS232, IR |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
|
| Networking |
None |
|
| Electrical |
|
|
| Power Req. |
100 - 240VAC, 50/60Hz |
|
| Input Current |
3.1/1.4A |
|
| Power Consumption |
280W/230W |
|
| Mechanical |
|
|
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
|
| Dimensions (WxDxH) |
10.2x8.2x3.5 in, 259x208.3x88.9 mm |
|
| Net Weight |
4.4 lbs, 2.0 kg |
|
| Fan Noise |
40 dB normal/33 dB eco |
|
| Regulations |
USA UL 1950 FCC Class B, Canada CSA950 (C-UL), NOM |
|
| Environmental |
|
|
| Operational Temp. |
41° to 104°F / 5° to 40°C |
|
| Humidity |
20-80% (non-condensing) |
|
| Storage |
14° to 122°F / -10° to 50°C |
|
| Warranty |
Registered owners receive a 3-year limited warranty including InstaCare. Includes three year limited warranty on parts and one year limited warranty on labor. The lamp is covered for one year or 500 hours - whatever comes first. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange. |
|
| Additional Features |
|
|
| SquareShot™ |
Instantly project a square image even when the projector is set up at a steep offset angle to the screen. |
|
| VORTEX™ Technology Plus |
No |
|
| Autosense™ |
Automatically syncs with any computer signal and features one touch image optimization. |
|
| SweetVision II™ |
No |
|
| 3D Reform™ |
No |
|
| Automatic keystone correction |
Ensures an instantly square image is projected even when the projector is set up at a steep offset angle to the screen. |
|
| Built-in Wall Color Correction |
Presets provide for adaptive color tone correction to display properly on non-white surfaces. |
|
| Advanced AccuBlend™ |
Ensures detailed images when non-native resolution sources are connected to the projector. |
|
| Kensington Lock Slot |
Enables security cable to be attached to projector. |
|
| Image Magnification |
64-step image magnification with location control |
|
| Sleep Timer |
Count down timer can be set to automatically turn off the projector |
|
| Eco-Mode™ Technology |
Extends lamp life, lowers audible noise and reduces total cost |
|
| Discreet Source Keys |
No |
|
| Computer free presentations |
No |
|
| High speed wireless |
No |
|
| Direct Power Off |
|
|
| In the Box |
Carrying case, remote control, battteries, power cord, RGB signal cable, lens cap, user's manual on CD-ROM, quick start guide,product registration card |
|
Compatibility
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz |
|
| Vertical |
50 to 85 Hz |
|
| Supported Video Standards |
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
1080i, 720p, 576p, 576i, 480i, 480p,Y/Cb/Cr component (with optional adapter – ADP-CV1) |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+ |
|
| Macintosh Compatibility |
Yes |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
|
Warranty Information
Registered owners receive a 3-year limited warranty including InstaCare. Includes three year limited warranty on parts and one year limited warranty on labor. The lamp is covered for one year or 500 hours - whatever comes first. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange. |
