Communicate at the speed of light.

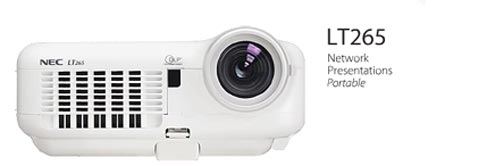

High-speed wireless enables audience members to collaborate and review information during meetings and even send images from their computers to the presentation projector for display. Perform remote diagnostics, send data through the network to remote locations or present from a computer located in another part of the building...the LT265 makes it all possible and easy.
- 2500 ANSI lumens
- XGA 1024x768 native resolution
- Integrated RJ45
- Real-time network presentations
- E-mail notification
Product Specifications
| Key Points |
Integrated RJ45
Real-time network presentations
E-mail notification |
|
| Unique Features |
Remote diagnostics
Remote desktop control
High speed networking (10 / 100 Base) |
|
| Optical |
|
|
| Display Technology |
.7 in DLP |
|
| Resolution |
|
|
| Native |
XGA 1024x768 |
|
| Maximum |
UXGA 1600x1200 |
|
| Light Output (lumens) |
2500 normal/2000 eco |
|
| Contrast Ratio |
1600:1 |
|
| Lamp Type |
220W UHP |
|
| Lamp Life (up to) |
2000 hours normal, 4000 hours eco |
|
| Screen Size (diagonal) |
30-500 in, 762-12700 mm |
|
| Throw Ratio |
2.0 - 2.4 |
|
| Projection Distance |
3.93 to 80.38 ft, 1.20 to 24.5 m |
|
| Projector Angle |
12.3 - 12.7° tele/14.8 - 15.4° wide |
|
| Lens |
|
|
| Zoom |
Automatic |
|
| Focus |
Automatic |
|
| F-number, f-number |
F=2.1-2.3, f=28.2-33.6 mm |
|
| Shift |
- |
|
| Keystone Correction |
+/- 35° horizontal |
|
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz (non interlaced) |
|
| Vertical |
48 to 20 Hz |
|
| Supported Video Standards |
NTSC, 4.43 NTSC, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576p, 720p, 1080i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
15-pin mini D-sub |
|
| RGB 2 (analog) |
15-pin mini D-sub |
|
| RGB 3 (digital) |
- |
|
| Video 1 |
Composite RCA x 1 |
|
| Video 2 |
S-Video 4-Pin DIN |
|
| Video 3 |
- |
|
| HD Video 1 |
- |
|
| HD Video 2 |
- |
|
| Audio |
1 set RCA stereo, 1 stereo mini |
|
| Monitor out |
RGB (analog) 15-pin mini D-sub |
|
| Audio out |
1 stereo mini (variable audio output) |
|
| Audio |
Built-in speakers 2 W monaural |
|
| External Control |
RS232, LAN, IR, USB |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
|
| Networking |
Wireless, Wired |
|
| Electrical |
|
|
| Power Req. |
100-240VAC, 50/60Hz |
|
| Input Current |
3.1A (100-120VAC), 1.4A (200-240VAC |
|
| Power Consumption |
290W normal mode, 240W eco |
|
| Mechanical |
|
|
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
|
| Dimensions (WxDxH) |
10.2x1.2x4.8 in, 260x315x123 mm |
|
| Net Weight |
6.4 lbs, 2.9 kg |
|
| Fan Noise |
32 dB normal/29 dB eco |
|
| Regulations |
USA UL 1950 FCC Class B, Canada CSA950 (C-UL), |
|
| Environmental |
|
|
| Operational Temp. |
41° to 95°F / 5° to 35°C |
|
| Humidity |
20-80% (non-condensing) |
|
| Storage |
14° to 122°F / -10° to 50°C |
|
| Warranty |
Registered owners receive a 2-year limited, parts and labor warranty including InstaCare. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange. The lamp when used under normal operating conditions is covered for 500 hours or 3 months, whichever comes first. |
|
| Additional Features |
|
|
| SquareShot™ |
No |
|
| VORTEX™ Technology Plus |
Breakthrough image processing technology improves white level, color accuracy, dynamic range and varying levels of black in an image. |
|
| Autosense™ |
Automatically syncs with any computer signal and features one touch image optimization. |
|
| SweetVision II™ |
No |
|
| 3D Reform™ |
Provides the ability to square the image by adjusting 3D Reform horizontally, vertically or diagonally when the projector can not be placed parallel or perpendicular to the screen. |
|
| Automatic keystone correction |
Ensures an instantly square image is projected even when the projector is set up at a steep offset angle to the screen. |
|
| Built-in Wall Color Correction |
Presets provide for adaptive color tone correction to display properly on non-white surfaces. |
|
| Advanced AccuBlend™ |
Ensures detailed images when non-native resolution sources are connected to the projector. |
|
| Kensington Lock Slot |
No |
|
| Image Magnification |
No |
|
| Sleep Timer |
No |
|
| Eco-Mode™ Technology |
Extends lamp life, lowers audible noise and reduces total cost |
|
| Discreet Source Keys |
No |
|
| Computer free presentations |
Insert a USB drive or CompactFlash memory card directly into the projector and change images using the wireless remote control provided with the projector. |
|
| High speed wireless |
IEEE802.11g and improved circuitry provide wireless communication up to 3 times faster than available from previous models. |
|
| Direct Power Off |
|
|
| In the Box |
Projector, lens cap, power cord, RGB signal cable, CD-ROM containing user manual and software, carrying case, remote control, batteries, quick start guide, product registration card, remote mouse receiver |
|
Compatibility
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz (non interlaced) |
|
| Vertical |
48 to 20 Hz |
|
| Supported Video Standards |
NTSC, 4.43 NTSC, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576p, 720p, 1080i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA |
|
| Macintosh Compatibility |
Yes |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
|
Warranty Information
Registered owners receive a 2-year limited, parts and labor warranty including InstaCare. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange. The lamp when used under normal operating conditions is covered for 500 hours or 3 months, whichever comes first. |
