Communicate at the speed of light.

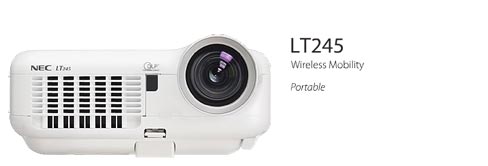

With blazingly fast wireless networking and a multitude of data-sharing options, the LT245 keeps you connected in all the right ways. And the short throw lens and high speed wireless capabilities allow you to display seamlessly in smaller rooms.
- 2200 ANSI lumens
- XGA 1024x768 native resolution
- Real-time wireless presentations
- Integrated RJ45
- Built-in security features
Product Specifications
| Key Points |
Real-time wireless presentations
Integrated RJ45
Built-in security features |
|
| Unique Features |
High speed wireless (802.11 g)
USB key presentation player
Remote desktop control and remote diagnostics |
|
| Optical |
|
|
| Display Technology |
.7 in DLP |
|
| Resolution |
|
|
| Native |
XGA 1024x768 |
|
| Maximum |
UXGA 1600x1200 |
|
| Light Output (lumens) |
2200 normal/1760 eco |
|
| Contrast Ratio |
2000:1 |
|
| Lamp Type |
220W UHP |
|
| Lamp Life (up to) |
2000 hours normal, 4000 hours eco |
|
| Screen Size (diagonal) |
30-500 in, 762-12700 mm |
|
| Throw Ratio |
1.5 - 1.9 |
|
| Projection Distance |
2.95 to 62.7 ft, .90 to 19.1 m |
|
| Projector Angle |
15.6 - 16.2° tele/18.5 - 19.4° wide |
|
| Lens |
|
|
| Zoom |
Automatic |
|
| Focus |
Automatic |
|
| F-number, f-number |
F=1.7-2.0, f=24.0-28.8 mm |
|
| Shift |
- |
|
| Keystone Correction |
+/- 35° horizontal |
|
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz (non interlaced) |
|
| Vertical |
48 to 20 Hz |
|
| Supported Video Standards |
NTSC, 4.43 NTSC, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576p, 720p, 1080i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
15-pin mini D-sub |
|
| RGB 2 (analog) |
15-pin mini D-sub |
|
| RGB 3 (digital) |
- |
|
| Video 1 |
Composite RCA x 1 |
|
| Video 2 |
S-Video 4-Pin DIN |
|
| Video 3 |
- |
|
| HD Video 1 |
- |
|
| HD Video 2 |
- |
|
| Audio |
1 set RCA stereo, 1 stereo mini |
|
| Monitor out |
RGB (analog) 15-pin mini D-sub |
|
| Audio out |
1 stereo mini (variable audio output) |
|
| Audio |
Built-in speakers 2 W monaural |
|
| External Control |
RS232, LAN, IR, USB |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
|
| Networking |
Wireless, Wired |
|
| Electrical |
|
|
| Power Req. |
100-240VAC, 50/60Hz |
|
| Input Current |
3.1A (100-120VAC), 1.4A (200-240VAC |
|
| Power Consumption |
290W normal mode, 240W in eco |
|
| Mechanical |
|
|
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
|
| Dimensions (WxDxH) |
10.2x1.2x4.8 in, 260x315x123 mm |
|
| Net Weight |
7.1 lbs, 3.2 kg |
|
| Fan Noise |
32 dB normal/29 dB eco |
|
| Regulations |
USA UL 1950 FCC Class B, Canada CSA950 (C-UL), |
|
| Environmental |
|
|
| Operational Temp. |
41° to 95°F / 5° to 35°C |
|
| Humidity |
20-80% (non-condensing) |
|
| Storage |
14° to 122°F / -10° to 50°C |
|
| Warranty |
Registered owners receive a 2-year limited, parts and labor warranty including InstaCare. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange. The lamp when used under normal operating conditions is covered for 500 hours or 3 months, whichever comes first. |
|
| Additional Features |
|
|
| SquareShot™ |
No |
|
| VORTEX™ Technology Plus |
Breakthrough image processing technology improves white level, color accuracy, dynamic range and varying levels of black in an image. |
|
| Autosense™ |
Automatically syncs with any computer signal and features one touch image optimization. |
|
| SweetVision II™ |
No |
|
| 3D Reform™ |
Provides the ability to square the image by adjusting 3D Reform horizontally, vertically or diagonally when the projector can not be placed parallel or perpendicular to the screen. |
|
| Automatic keystone correction |
Ensures an instantly square image is projected even when the projector is set up at a steep offset angle to the screen. |
|
| Built-in Wall Color Correction |
Presets provide for adaptive color tone correction to display properly on non-white surfaces. |
|
| Advanced AccuBlend™ |
Ensures detailed images when non-native resolution sources are connected to the projector. |
|
| Kensington Lock Slot |
No |
|
| Image Magnification |
No |
|
| Sleep Timer |
No |
|
| Eco-Mode™ Technology |
Extends lamp life, lowers audible noise and reduces total cost |
|
| Discreet Source Keys |
No |
|
| Computer free presentations |
Insert a USB drive or CompactFlash memory card directly into the projector and change images using the wireless remote control provided with the projector. |
|
| High speed wireless |
IEEE802.11g and improved circuitry provide wireless communication up to 3 times faster than available from previous models. |
|
| Direct Power Off |
|
|
| In the Box |
Projector, lens cap, power cord, RGB signal cable, CD-ROM containing user manual and software, carrying case, remote control, batteries, quick start guide, product registration card, remote mouse receiver |
|
Compatibility
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz (non interlaced) |
|
| Vertical |
48 to 20 Hz |
|
| Supported Video Standards |
NTSC, 4.43 NTSC, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576p, 720p, 1080i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA |
|
| Macintosh Compatibility |
Yes |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
|
Warranty Information
Registered owners receive a 2-year limited, parts and labor warranty including InstaCare. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange. The lamp when used under normal operating conditions is covered for 500 hours or 3 months, whichever comes first. |
