Feel at home while on the road.

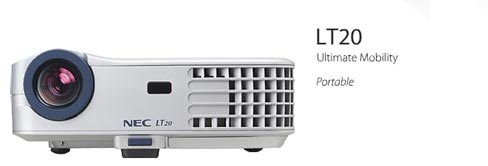

Loaded into a chassis with the footprint of a DVD case and weighing only 2.2lbs, the LT20 is chock-full of intelligent features tuned to maximize on-the-road presentation impact. And plug and project functionality allows you to seal the deal quickly while projecting in an instant. With these and many more powerful features, the LT20 is sure to make you a victorious road warrior.
- 1500 ANSI lumens
- XGA 1024x768 native resolution
- Compact and lightweight
- Fits in your briefcase
- One-touch operation
Product specifications
| Key Points |
Compact and lightweight
Fits in your briefcase
One-touch operation |
|
| Unique Features |
Component video with optional RGB adapter
Up to 3,000 hour lamp life
Image magnification |
|
| Optical |
|
|
| Display Technology |
.7 in DLP |
|
| Resolution |
|
|
| Native |
XGA 1024x768 |
|
| Maximum |
UXGA 1600x1200 |
|
| Light Output (lumens) |
1500 normal/1300 eco |
|
| Contrast Ratio |
2000:1 |
|
| Lamp Type |
156W UHP |
|
| Lamp Life (up to) |
2000 hours normal, 3000 hours eco |
|
| Screen Size (diagonal) |
30-240 in, 762-6096 mm |
|
| Throw Ratio |
1.6 - 1.94 |
|
| Projection Distance |
4.0 to 38.82 ft, 1.22 to 11.8 m |
|
| Projector Angle |
9.5° tele/13.7° wide |
|
| Lens |
|
|
| Zoom |
Manual |
|
| Focus |
Manual |
|
| F-number, f-number |
F=2.7-2.88, f=28.4-32.8 mm |
|
| Shift |
- |
|
| Keystone Correction |
Keystone Correction +/- 8° vertical |
|
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 80 kHz (non interlaced) |
|
| Vertical |
50 to 85 Hz |
|
| Supported Video Standards |
NTSC, 4.43 NTSC, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576p, 720p, 1080i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA+ |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
15-pin mini D-sub |
|
| RGB 2 (analog) |
- |
|
| RGB 3 (digital) |
- |
|
| Video 1 |
Composite RCA x 1 |
|
| Video 2 |
S-Video 4-Pin DIN |
|
| Video 3 |
- |
|
| HD Video 1 |
- |
|
| HD Video 2 |
- |
|
| Audio |
- |
|
| Monitor out |
- |
|
| Audio out |
- |
|
| Audio |
No |
|
| External Control |
IR |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
|
| Networking |
None |
|
| Electrical |
|
|
| Power Req. |
100-120VAC/200-240VAC, 50/60Hz |
|
| Input Current |
2.0A (100-120VAC), 2.0A (200-240VAC) |
|
| Power Consumption |
200W |
|
| Mechanical |
|
|
| Installation Orientation |
Floor/Front, Floor/Rear |
|
| Dimensions (WxDxH) |
7.8x5.9x2.9 in , 200x151x56 mm |
|
| Net Weight |
2.2 lbs, .96 kg |
|
| Fan Noise |
35dB |
|
| Regulations |
USA UL 1950 FCC Class B, Canada CSA950 (C-UL) |
|
| Environmental |
|
|
| Operational Temp. |
41° to 95°F / 5° to 35°C |
|
| Humidity |
20-80% (non-condensing) |
|
| Storage |
-14° to 122°F / -20° to 60°C |
|
| Warranty |
Registered owners receive a 2-year limited, parts and labor warranty including InstaCare. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange. The lamp when used under normal operating conditions is covered for 500 hours or 3 months, whichever comes first. |
|
| Additional Features |
|
|
| SquareShotT |
No |
|
| VORTEXT Technology Plus |
Breakthrough image processing technology improves white level, color accuracy, dynamic range and varying levels of black in an image. |
|
| AutosenseT |
Automatically syncs with any computer signal and features one touch image optimization. |
|
| SweetVision IIT |
No |
|
| 3D ReformT |
No |
|
| Automatic keystone correction |
No |
|
| Built-in Wall Color Correction |
No |
|
| Advanced AccuBlendT |
Ensures detailed images when non-native resolution sources are connected to the projector. |
|
| Kensington Lock Slot |
No |
|
| Image Magnification |
No |
|
| Sleep Timer |
No |
|
| Eco-ModeT Technology |
Extends lamp life, lowers audible noise and reduces total cost |
|
| Discreet Source Keys |
No |
|
| Computer free presentations |
No |
|
| High speed wireless |
No |
|
| Direct Power Off |
|
|
| In the Box |
Users manual, wireless remote control, D-sub signal cable, power cable, set up guide, registration card |
|
Compatibility
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 80 kHz (non interlaced) |
|
| Vertical |
50 to 85 Hz |
|
| Supported Video Standards |
NTSC, 4.43 NTSC, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576p, 720p, 1080i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA+ |
|
| Macintosh Compatibility |
Yes |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
|
Warranty Information
Registered owners receive a 2-year limited, parts and labor warranty including InstaCare. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange. The lamp when used under normal operating conditions is covered for 500 hours or 3 months, whichever comes first. |
