Reveal possibilities with professional video quality.

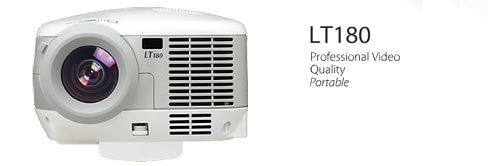

The NEC LT180 houses seriously advanced projection technology that gives you the power to project real life colors, extremely detailed images, and enhanced video. Presentations will be a snap, too, with the ability to plug in and project an image in 12 seconds. The NEC LT180 gets the job done so well and so easily, the hardest decision will be which open door to go through next.
- 2000 ANSI lumens
- XGA 1024x768 native resolution
- Expanded Video Connections
- Wall Color Correction
- Built-in video deinterlacing technology
Product Specifications
| Key Points |
Expanded Video Connections Wall Color Correction Built-in video deinterlacing technology |
|
| Unique Features |
Adjustable vertical position for wide screen display Multiple aspect ratio settings
Vortex Technology advanced color correction technology |
|
| Optical |
|
|
| Display Technology |
.7 in DLP |
|
| Resolution |
|
|
| Native |
XGA 1024x769 |
|
| Maximum |
SXGA+ 1400x1050 |
|
| Light Output (lumens) |
2000 normal/1600 eco |
|
| Contrast Ratio |
1000:1 |
|
| Lamp Type |
168W UHP |
|
| Lamp Life (up to) |
2000 hours normal, 3000 hours eco |
|
| Screen Size (diagonal) |
30-200 in, 76-5080 mm |
|
| Throw Ratio |
1.37 - 1.63 |
|
| Projection Distance |
2.67 to 22 ft, .8 to 6.7 m |
|
| Projector Angle |
10.5° tele/12.4° wide |
|
| Lens |
|
|
| Zoom |
Manual |
|
| Focus |
Manual |
|
| F-number, f-number |
F=2.0-2.48, f=19.7-23.0 mm |
|
| Shift |
- |
|
| Keystone Correction |
Manual Keystone Correction +/- 15° vertical |
|
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz (non interlaced) |
|
| Vertical |
50 to 85 Hz |
|
| Supported Video Standards |
NTSC, 4.43 NTSC, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576p, 720p, 1080i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+ |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
15-pin mini D-sub |
|
| RGB 2 (analog) |
- |
|
| RGB 3 (digital) |
- |
|
| Video 1 |
Composite RCA x 1 |
|
| Video 2 |
S-Video 4-Pin DIN |
|
| Video 3 |
- |
|
| HD Video 1 |
Component RCA x 1 |
|
| HD Video 2 |
- |
|
| Audio |
1 set RCA stereo, 1 stereo mini |
|
| Monitor out |
RGB (analog) 15-pin mini D-sub |
|
| Audio out |
1 stereo mini (variable audio output) |
|
| Audio |
Built-in speakers 1 W monaural |
|
| External Control |
RS232, IR |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
|
| Networking |
None |
|
| Electrical |
|
|
| Power Req. |
100-120VAC/200-240VAC, 50/60Hz |
|
| Input Current |
3.2A (100-120VAC), 1.5A (200-240VAC) |
|
| Power Consumption |
280W normal, 220W eco |
|
| Mechanical |
|
|
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
|
| Dimensions (WxDxH) |
7.4x13.3x4.4 in , 187x337x113 mm |
|
| Net Weight |
6.4 lbs, 2.9 kg |
|
| Fan Noise |
35 dB normal/30 dB eco |
|
| Regulations |
USA UL 1950 FCC Class B, Canada CSA950 (C-UL), |
|
| Environmental |
|
|
| Operational Temp. |
41° to 95°F / 5° to 35°C |
|
| Humidity |
5-80% (non-condensing) |
|
| Storage |
-4° to 140°F / -20° to 60°C |
|
| Warranty |
Registered owners receive a 2-year limited, parts and labor warranty including InstaCare. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange. The lamp when used under normal operating conditions is covered for 500 hours or 3 months, whichever comes first. |
|
| Additional Features |
|
|
| SquareShotT |
No |
|
| VORTEXT Technology Plus |
Breakthrough image processing technology improves white level, color accuracy, dynamic range and varying levels of black in an image. |
|
| AutosenseT |
Automatically syncs with any computer signal and features one touch image optimization. |
|
| SweetVision IIT |
No |
|
| 3D ReformT |
No |
|
| Automatic keystone correction |
Ensures an instantly square image is projected even when the projector is set up at a steep offset angle to the screen. |
|
| Built-in Wall Color Correction |
Presets provide for adaptive color tone correction to display properly on non-white surfaces. |
|
| Advanced AccuBlendT |
Ensures detailed images when non-native resolution sources are connected to the projector. |
|
| Kensington Lock Slot |
No |
|
| Image Magnification |
No |
|
| Sleep Timer |
No |
|
| Eco-ModeT Technology |
Extends lamp life, lowers audible noise and reduces total cost |
|
| Discreet Source Keys |
No |
|
| Computer free presentations |
No |
|
| High speed wireless |
No |
|
| Direct Power Off |
|
|
| In the Box |
Projector, lens cap, power cord, RGB signal cable, CD-ROM containing user manual, carrying case, remote control, (2) AAA batteries, quick start guide, product registration card |
|
Compatibility
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz (non interlaced) |
|
| Vertical |
50 to 85 Hz |
|
| Supported Video Standards |
NTSC, 4.43 NTSC, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576p, 720p, 1080i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+ |
|
| Macintosh Compatibility |
Yes |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
|
Warranty Information
Registered owners receive a 2-year limited, parts and labor warranty including InstaCare. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange. The lamp when used under normal operating conditions is covered for 500 hours or 3 months, whichever comes first. |
