Customization expands your capabilities.

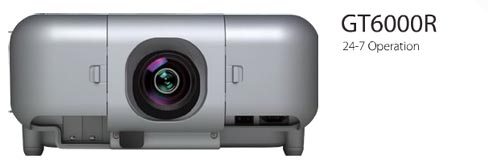

The SXGA+ GT6000R projector is designed for intensive-use in 12x7 and 24x7 applications. Components and filters have been specifically selected in the design of the projector to meet the rigorous requirements of long-term application use. The GT6000R balances all the critical control requirements by reducing the time and expense for projector servicing and maintenance.
- 2000 ANSI lumens
- SXGA+ 1400x1050 native resolution
- Command and control applications
- Integrated RJ45 networking
- Long lamp life
Product specifications
| Key Points |
Command and control applications
Integrated RJ45 networking
Long lamp life |
|
| Unique Features |
Optimized for long term operating environments
4 lens options
Up to 9000 hour Lamp Life |
|
| Optical |
|
|
| Display Technology |
1.4 in LCD |
|
| Resolution |
|
|
| Native |
SXGA+ 1400x1050 |
|
| Maximum |
UXGA 1600x1200 |
|
| Light Output (lumens) |
2000 normal |
|
| Contrast Ratio |
600:1 |
|
| Lamp Type |
300W NSH |
|
| Lamp Life (up to) |
4500 hours normal |
|
| Screen Size (diagonal) |
40-250 in, 1016-6350 mm |
|
| Throw Ratio |
Throw Ratio |
|
| Projection Distance |
2.50 to 16.55 ft, 0.76 to 5.04 m |
|
| Projector Angle |
0° |
|
| Lens |
|
|
| Zoom |
Manual |
|
| Focus |
Manual |
|
| F-number, f-number |
F=2.4, f=28.9 mm |
|
| Shift |
NA |
|
| Keystone Correction |
+/- 40° vertical, +/- 35° horizontal |
|
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz (non interlaced) |
|
| Vertical |
48 to 120 Hz |
|
| Supported Video Standards |
NTSC, 4.43 NTSC, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576p, 720p, 1080i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
5 BNC |
|
| RGB 2 (analog) |
15-pin mini D-sub |
|
| RGB 3 (digital) |
DVI-D |
|
| Video 1 |
Composite RCA x 1 |
|
| Video 2 |
S-Video 4-Pin DIN |
|
| Video 3 |
- |
|
| HD Video 1 |
- |
|
| HD Video 2 |
- |
|
| Audio |
1 RCA mono, 2 sets RCA stereo, 2 stereo mini |
|
| Monitor out |
RGB (analog) 15-pin mini D-sub |
|
| Audio out |
1 set RCA stereo (variable audio output) |
|
| Audio |
- |
|
| External Control |
RS232, LAN, IR, USB |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
|
| Networking |
Wireless, Wired |
|
| Electrical |
|
|
| Power Req. |
100-120VAC/200-240VAC, 50/60Hz |
|
| Input Current |
5.3A (100-120VAC), 2.7A (200-240VAC) |
|
| Power Consumption |
530W |
|
| Mechanical |
|
|
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
|
| Dimensions (WxDxH) |
20.4x21.6x9.5 in, 518x548x242 mm |
|
| Net Weight |
42.8 lbs, 19.4 kg (with lens) |
|
| Fan Noise |
42 dB |
|
| Regulations |
USA UL 1950 FCC Class B, Canada CSA950 (C-UL), |
|
| Environmental |
|
|
| Operational Temp. |
32° to 95°F / 0° to 35°C |
|
| Humidity |
20-80% (non-condensing) |
|
| Storage |
14° to 122°F / -10° to 50°C |
|
| Warranty |
Owners receive a 2-year limited parts and labor warranty. RepairCareT is provided during the first year of coverage for registered owners. RepairCare provides the original owner with 3-business day repair and return of the projector. When used under normal operating conditions, the lamp is covered for 90 days or 500 hours, whichever comes first. |
|
| Additional Features |
|
|
| SquareShotT |
No |
|
| VORTEXT Technology Plus |
Breakthrough image processing technology improves white level, color accuracy, dynamic range and varying levels of black in an image. |
|
| AutosenseT |
Automatically syncs with any computer signal and features one touch image optimization. |
|
| SweetVision IIT |
No |
|
| 3D ReformT |
Provides the ability to square the image by adjusting 3D Reform horizontally, vertically or diagonally when the projector can not be placed parallel or perpendicular to the screen. |
|
| Automatic keystone correction |
Ensures an instantly square image is projected even when the projector is set up at a steep offset angle to the screen. |
|
| Built-in Wall Color Correction |
Presets provide for adaptive color tone correction to display properly on non-white surfaces. |
|
| Advanced AccuBlendT |
Ensures detailed images when non-native resolution sources are connected to the projector. |
|
| Kensington Lock Slot |
Enables security cable to be attached to projector. |
|
| Image Magnification |
64-step image magnification with location control |
|
| Sleep Timer |
Count down timer can be set to automatically turn off the projector |
|
| Eco-ModeT Technology |
Extends lamp life, lowers audible noise and reduces total cost |
|
| Discreet Source Keys |
Projector and remote feature direct access buttons for source selection |
|
| Computer free presentations |
Insert a USB drive or CompactFlash memory card directly into the projector and change images using the wireless remote control provided with the projector. |
|
| High speed wireless |
IEEE802.11g and improved circuitry provide wireless communication up to 3 times faster than available from previous models. |
|
| Direct Power Off |
|
|
| In the Box |
Users manual, wired/wireless addressable remote control with laser pointer, power cable, remote cable, signal cable, quick connect guide, registration card, application CD-ROM |
Compatibility
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz (non interlaced) |
|
| Vertical |
48 to 120 Hz |
|
| Supported Video Standards |
NTSC, 4.43 NTSC, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576p, 720p, 1080i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA |
|
| Macintosh Compatibility |
Yes |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
Warranty Information
Owners receive a 2-year limited parts and labor warranty. RepairCareT is provided during the first year of coverage for registered owners. RepairCare provides the original owner with 3-business day repair and return of the projector. When used under normal operating conditions, the lamp is covered for 90 days or 500 hours, whichever comes first. |
