Customization expands your capabilities.

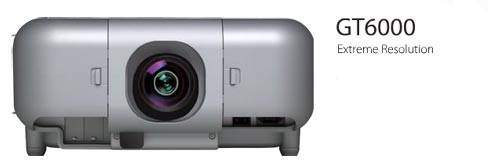

Wow your audiences with heart stopping video and super-rich colors. Impress the board with detailed sales charts and graphs. Whatever impact you desire, the feature rich GT6000 helps bring it all together with show stopping power.
- 5300 ANSI lumens
- SXGA+ 1400x1050 native resolution
- Excellent video quality
- Multiple connectivity options
- Extensive optional lens
Product Specifications
| Key Points |
Duel lamp configuration
Excellent video quality
Extensive optional lens
Horizontal and Vertical Lens Shift |
|
| Unique Features |
SweetVision and Faroudja video processing
High resolution 1400 x 1050 (SXGA+)
2 optional connectivity cards (BNC & HDSDI) |
|
| Optical |
|
|
| Display Technology |
1.4 in LCD |
|
| Resolution |
|
|
| Native |
SXGA+ 1400x1050 |
|
| Maximum |
UXGA 1600x1200 |
|
| Light Output (lumens) |
5300 normal/4100 eco |
|
| Contrast Ratio |
700:1 |
|
| Lamp Type |
275W NSH |
|
| Lamp Life (up to) |
2000 hours normal, 3000 hours eco |
|
| Screen Size (diagonal) |
40-500 in, 1016-12700 mm |
|
| Throw Ratio |
Throw Ratio |
|
| Projection Distance |
1.46 to 241.9 ft, 0.45 to 73.73 m |
|
| Projector Angle |
See lens Specifications |
|
| Lens |
|
|
| Zoom |
Power for Zoom and Focus |
|
| Focus |
Manual |
|
| F-number, f-number |
See lens Specifications |
|
| Shift |
GT06RLB/GT10RLB - No lens shift capability
GT12ZLB/GT20ZL/GT48ZLB - 50% max up/down, 32% max right/left
GT19ZLB/GT24ZLB/GT34ZLB - 39% max up/down, 24% max right/left |
|
| Keystone Correction |
+/- 40° vertical, +/- 30° horizontal |
|
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz (non interlaced) |
|
| Vertical |
48 to 120 Hz |
|
| Supported Video Standards |
NTSC, 4.43 NTSC, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576p, 720p, 1080i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
5 BNC |
|
| RGB 2 (analog) |
15-pin mini D-sub |
|
| RGB 3 (digital) |
DVI-D |
|
| Video 1 |
Composite RCA x 1 |
|
| Video 2 |
S-Video 4-Pin DIN |
|
| Video 3 |
- |
|
| HD Video 1 |
- |
|
| HD Video 2 |
- |
|
| Audio |
1 RCA mono, 2 sets RCA stereo, 2 stereo mini |
|
| Monitor out |
RGB (analog) 15-pin mini D-sub |
|
| Audio out |
1 set RCA stereo (variable audio output) |
|
| Audio |
Built-in speakers 5W x 3 |
|
| External Control |
RS232, LAN, IR, USB |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
|
| Networking |
Wireless, Wired |
|
| Electrical |
|
|
| Power Req. |
100-120VAC/200-240VAC, 50/60Hz |
|
| Input Current |
8A (100-120VAC), 4A (200-240VAC) |
|
| Power Consumption |
800W |
|
| Mechanical |
|
|
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
|
| Dimensions (WxDxH) |
20.4x21.6x9.5 in, 518x548x242 mm |
|
| Net Weight |
40.57 lbs, 18.4 kg (without lens) |
|
| Fan Noise |
45 dB |
|
| Regulations |
USA UL 1950 FCC Class B, Canada CSA950 (C-UL), |
|
| Environmental |
|
|
| Operational Temp. |
32° to 95°F / 0° to 35°C |
|
| Humidity |
20-80% (non-condensing) |
|
| Storage |
14° to 122°F / -10° to 50°C |
|
| Warranty |
Owners receive a 2-year limited parts and labor warranty. RepairCareT is provided during the first year of coverage for registered owners. RepairCare provides the original owner with 3-business day repair and return of the projector. When used under normal operating conditions, the lamp is covered for 90 days or 500 hours, whichever comes first. |
|
| Additional Features |
|
|
| SquareShotT |
No |
|
| VORTEXT Technology Plus |
Breakthrough image processing technology improves white level, color accuracy, dynamic range and varying levels of black in an image. |
|
| AutosenseT |
Automatically syncs with any computer signal and features one touch image optimization. |
|
| SweetVision IIT |
No |
|
| 3D ReformT |
Provides the ability to square the image by adjusting 3D Reform horizontally, vertically or diagonally when the projector can not be placed parallel or perpendicular to the screen. |
|
| Automatic keystone correction |
No |
|
| Built-in Wall Color Correction |
No |
|
| Advanced AccuBlendT |
Ensures detailed images when non-native resolution sources are connected to the projector. |
|
| Kensington Lock Slot |
Enables security cable to be attached to projector. |
|
| Image Magnification |
64-step image magnification with location control |
|
| Sleep Timer |
Count down timer can be set to automatically turn off the projector |
|
| Eco-ModeT Technology |
Extends lamp life, lowers audible noise and reduces total cost |
|
| Discreet Source Keys |
Projector and remote feature direct access buttons for source selection |
|
| Computer free presentations |
Insert a USB drive or CompactFlash memory card directly into the projector and change images using the wireless remote control provided with the projector. |
|
| High speed wireless |
IEEE802.11k |
|
| Direct Power Off |
|
|
| In the Box |
Users manual, wired/wireless addressable remote control with laser pointer, power cable, remote cable, signal cable, quick connect guide, registration card, application CD-ROM |
Compatibility
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz (non interlaced) |
|
| Vertical |
48 to 120 Hz |
|
| Supported Video Standards |
NTSC, 4.43 NTSC, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576p, 720p, 1080i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA |
|
| Macintosh Compatibility |
Yes |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
|
Warranty Information
Owners receive a 2-year limited parts and labor warranty. RepairCareT is provided during the first year of coverage for registered owners. RepairCare provides the original owner with 3-business day repair and return of the projector. When used under normal operating conditions, the lamp is covered for 90 days or 500 hours, whichever comes first. |
