Customization expands your capabilities.

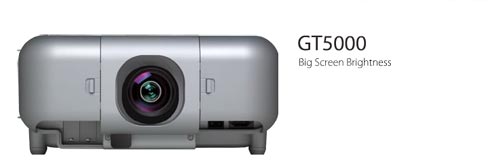

The GT5000 projector give you tremendous configuration flexibility so you can place or install the projector almost anywhere, connect it to virtually any source or even control and monitor it from your local area network. See images with clarity and unrivaled sharpness.
- 6000 ANSI lumens
- XGA 1024x768 native resolution
- Dual lamp configuration
- Excellent video quality
- Extensive optional lens
Product Specifications
| Key Points |
Duel lamp configuration
Excellent video quality
Extensive optional lens
Horizontal and Vertical Lens Shift |
|
| Unique Features |
SweetVision and Faroudja Video Processing
8 Optional Lens
Optional Long Life Lamp |
|
| Optical |
|
|
| Display Technology |
1.4 in LCD |
|
| Resolution |
|
|
| Native |
XGA 1024x768 |
|
| Maximum |
UXGA 1600x1200 |
|
| Light Output (lumens) |
6000 normal/4700 eco |
|
| Contrast Ratio |
700:1 |
|
| Lamp Type |
275W NSH |
|
| Lamp Life (up to) |
2000 hours normal, 3000 hours eco |
|
| Screen Size (diagonal) |
40-500 in, 1016-12700 mm |
|
| Throw Ratio |
Throw Ratio |
|
| Projection Distance |
1.46 to 241.9 ft, 0.45 to 73.73 m |
|
| Projector Angle |
See lens Specifications |
|
| Lens |
|
|
| Zoom |
Power for Zoom and Focus |
|
| Focus |
Manual |
|
| F-number, f-number |
See lens Specifications |
|
| Shift |
GT06RLB/GT10RLB - No lens shift capability
GT12ZLB/GT20ZL/GT48ZLB - 50% max up/down, 32% max right/left
GT19ZLB/GT24ZLB/GT34ZLB - 39% max up/down, 24% max right/left |
|
| Keystone Correction |
+/- 40° vertical, +/- 30° horizontal |
|
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz (non interlaced) |
|
| Vertical |
48 to 120 Hz |
|
| Supported Video Standards |
NTSC, 4.43 NTSC, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576p, 720p, 1080i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
5 BNC |
|
| RGB 2 (analog) |
15-pin mini D-sub |
|
| RGB 3 (digital) |
DVI-D |
|
| Video 1 |
Composite RCA x 1 |
|
| Video 2 |
S-Video 4-Pin DIN |
|
| Video 3 |
- |
|
| HD Video 1 |
- |
|
| HD Video 2 |
- |
|
| Audio |
1 RCA mono, 2 sets RCA stereo, 2 stereo mini |
|
| Monitor out |
RGB (analog) 15-pin mini D-sub |
|
| Audio out |
1 set RCA stereo (variable audio output) |
|
| Audio |
Built-in speakers 5W x 3 |
|
| External Control |
RS232, LAN, IR, USB |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
|
| Networking |
Wireless, Wired |
|
| Electrical |
|
|
| Power Req. |
100-120VAC/200-240VAC, 50/60Hz |
|
| Input Current |
8A (100-120VAC), 4A (200-240VAC) |
|
| Power Consumption |
800W |
|
| Mechanical |
|
|
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
|
| Dimensions (WxDxH) |
20.4x21.6x9.5 in, 518x548x242 mm |
|
| Net Weight |
40.57 lbs, 18.4 kg (without lens) |
|
| Fan Noise |
45 dB |
|
| Regulations |
USA UL 1950 FCC Class B, Canada CSA950 (C-UL), |
|
| Environmental |
|
|
| Operational Temp. |
32° to 95°F / 0° to 35°C |
|
| Humidity |
20-80% (non-condensing) |
|
| Storage |
14° to 122°F / -10° to 50°C |
|
| Warranty |
Owners receive a 2-year limited parts and labor warranty. RepairCareâ"¢ is provided during the first year of coverage for registered owners. RepairCare provides the original owner with 3-business day repair and return of the projector. When used under normal operating conditions, the lamp is covered for 90 days or 500 hours, whichever comes first. |
|
| Additional Features |
|
|
| SquareShotT |
No |
|
| VORTEXT Technology Plus |
Breakthrough image processing technology improves white level, color accuracy, dynamic range and varying levels of black in an image. |
|
| AutosenseT |
Automatically syncs with any computer signal and features one touch image optimization. |
|
| SweetVision IIT |
No |
|
| 3D ReformT |
Provides the ability to square the image by adjusting 3D Reform horizontally, vertically or diagonally when the projector can not be placed parallel or perpendicular to the screen. |
|
| Automatic keystone correction |
No |
|
| Built-in Wall Color Correction |
No |
|
| Advanced AccuBlendT |
Ensures detailed images when non-native resolution sources are connected to the projector. |
|
| Kensington Lock Slot |
Enables security cable to be attached to projector. |
|
| Image Magnification |
64-step image magnification with location control |
|
| Sleep Timer |
Count down timer can be set to automatically turn off the projector |
|
| Eco-ModeT Technology |
Extends lamp life, lowers audible noise and reduces total cost |
|
| Discreet Source Keys |
Projector and remote feature direct access buttons for source selection |
|
| Computer free presentations |
Insert a USB drive or CompactFlash memory card directly into the projector and change images using the wireless remote control provided with the projector. |
|
| High speed wireless |
IEEE802.11k |
|
| Direct Power Off |
|
|
| In the Box |
Users manual, wired/wireless addressable remote control with laser pointer, power cable, remote cable, signal cable, quick connect guide, registration card, application CD-ROM |
Compatibility
| Signal Compatibility/Connectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15 to 100 kHz (non interlaced) |
|
| Vertical |
48 to 120 Hz |
|
| Supported Video Standards |
NTSC, 4.43 NTSC, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576p, 720p, 1080i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA |
|
| Macintosh Compatibility |
Yes |
|
| Sync Compatiblity |
Separate Sync/Composite Sync/Sync on G |
Warranty Information
Owners receive a 2-year limited parts and labor warranty. RepairCareâ"¢ is provided during the first year of coverage for registered owners. RepairCare provides the original owner with 3-business day repair and return of the projector. When used under normal operating conditions, the lamp is covered for 90 days or 500 hours, whichever comes first. |
