Add impact to your information.

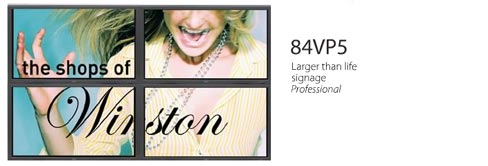

NEC has bundled four PX42VP5's and the required wall mount for a huge display area of nearly 3000 square inches! That is a lot of viewing power. Add impact by running one source over the entire 84" display to capture your audience's attention. Or, supply critical meeting room schedules from your internal database, flight information from a second source all while world and local news stories are running. With the 84VP5's sophisticated timer/source programmability feature, the ability to control and customize your presentation is endless.
- 84" diagonal
- 1706x960 native resolution
- Motion compensated scan conversion
- Anti-reflective filter
- Sleek design
Product Specifications
| Key Points |
Low power consumption Comprehensive input panel High brightness/contrast |
|
| Unique Features |
Anti-glare filter Long life > 60,000 hours Programable timer for automatic operation |
|
| Plasma Module |
|
|
| Screen Size (Diagonal) |
84" |
|
| Screen Aspect Ratio 16 to 9 |
16 to 9 |
|
| Active Screen Area (WxH) |
36.3 x 20.4 in, 921 x 518 mm |
|
| Native Resolution |
WVGA 853 x 480 |
|
| Pixel Pitch |
1.08 mm square |
|
| Color Processing |
68.7 billion colors, 4096 levels |
|
| Viewing Angle |
160° |
|
| Half life |
60,000 hours |
|
| Filter Type |
Anti-glare |
|
| Signal Compatibility/Connnectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15.5 to 110.0 kHz auto, step scan |
|
| Vertical |
50 to120 Hz auto, step scan |
|
| Supported Video Standards |
PAL, SECAM, 3.58/4.43 NTSC, ATSC |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 525i, 525p, 540p, 625i, 625p, 720p, 1035i, 1080i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA, WideVGA (848x480, 852x480), WideXGA (1360x768) |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
15-pin mini D-sub (common use with RGB out, selectable) |
|
| RGB 2 (analog) |
5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input, selectable) |
|
| RGB 3 (digital) |
24-pin DVI-D HDCP (EIA/CEA-861-A) compatible |
|
| Video 1 |
Composite BNC x 1 (common use with Video out, selectable) |
|
| Video 2 |
Composite RCA x 2 |
|
| Video 3 |
S-Video 4-Pin DIN |
|
| HD Video 1 |
1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr) |
|
| HD Video 2 |
1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr) (common use with 5BNC Y/Pb/Pr |
|
| HD Video 3 |
|
|
| HD Video 4 |
|
|
| Audio |
3 sets RCA stereo + external speaker jacks |
|
| Audio |
Internal amplifier, 8W x 2 output power |
|
| External Control |
RS232, IR |
|
| RGB Loop-out |
Yes |
|
| Video Loop-out |
Yes |
|
| Electrical |
|
|
| Power Requirements |
120V 50/60 Hz |
|
| Power Consumption |
270W Typical, 4.6 Amp Maximum |
|
| Standby Power |
0.9W |
|
| Mechnical |
|
|
| Dimensions (WxHxD) |
40.1 x 24.0 x 3.5 in, 1018 x 610 x 89mm |
|
| Net Weight |
63.0 lbs., 28.5 kg |
|
| Regulations |
FCC Class A, UL1950, CSA950 |
|
| Fan Noise |
Fanless |
|
| Environmental |
|
|
| Operating Temperature |
32 - 104 degrees F (0 - 40 degrees C) |
|
| Operating Humidity |
20 - 80% |
|
| Operating Altitude |
0 - 9180 feet (0 - 2800m) |
|
| Storage Temperature |
14 - 122 degrees F (-10 - 50 degrees C) |
|
| Storage Humidity |
10 - 90% |
|
| Storage Altitude |
0 to 9840 feet (0 - 3000m) |
|
| Warranty |
1 Years Parts & Labor/1 year plasma module |
|
| Additional Features |
|
|
| Split Screen / Picture-in-Picture |
No |
|
| Advanced AccuBlend |
Ensures detailed images when non-native resolution sources are connected to the projector. |
|
| Phospher Protection |
6 modes - A comprehensive set of built-in modes protects your screen from image retention. |
|
| Mass Area Superior Sampling (MASS) |
Eliminates jagged lines and corrects color bleeds to create clear and defined images. |
|
| Enhanced Mass Area Superior Sampling |
|
|
| Capsulated Color Filter™ (CCF) technology |
CCF delivers realistic color reproduction creating the greatest color space when plotted on the C.I.E. Chromaticity chart. |
|
| AccuCrimson™ Filter technology |
Further enhances the effects of the CCF producing better reds and greens. |
|
| Advanced AccuCrimson™ Filter technology |
|
|
| Color Tune Technology |
Adjust individual colors without affecting white balance. |
|
| Gamma 12 |
Provides the highest color processing in a plasma display at 68.7 billion colors (4096 steps) resulting in increased detail never seen before... no matter what the viewing environment! |
|
| Closed captioning |
Yes |
|
| Matrix Capability |
2X2, 3X3, 4X4, 5x5 |
|
| Bonded Color Filter |
|
|
| In the Box |
AC Power Cord, User Manual, Remote Control, Batteries, Cable Clamps |
|
Compatibility
| Signal Compatibility/Connnectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15.5 to 110.0 kHz auto, step scan |
|
| Vertical |
50 to120 Hz auto, step scan |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA, WideVGA (848x480, 852x480), WideXGA (1360x768) |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
15-pin mini D-sub (common use with RGB out, selectable) |
|
| RGB 2 (analog) |
5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input, selectable) |
|
| RGB 3 (digital) |
24-pin DVI-D HDCP (EIA/CEA-861-A) compatible |
|
| Video 1 |
Composite BNC x 1 (common use with Video out, selectable) |
|
| Video 2 |
Composite RCA x 2 |
|
| Video 3 |
S-Video 4-Pin DIN |
|
| HD Video 1 |
1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr) |
|
| HD Video 2 |
1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr) (common use with 5BNC Y/Pb/Pr |
|
| HD Video 3 |
|
|
| HD Video 4 |
|
|
| Audio |
3 sets RCA stereo + external speaker jacks |
|
Warranty Information
1 Years Parts & Labor/1 year plasma module |
