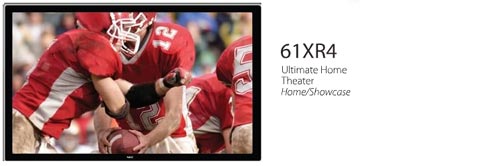

The way high definition was meant to be seen.
Experience the ultimate home theater with the 61XR4. With uncompromising image display, extraordinary picture quality and unsurpassed compatibility, the 61XR4 is the premium display. Sporting a sleek design that will fit seamlessly into your living room, the 61XR4 displays crystal clear images every time.
- 61" diagonal
- 1365x768 WideXGA Resolution
- Direct source select
- Enhanced digital video processing
- Enhanced picture in picture
- 60,000 hours half life
Product Specifications
| Key Points |
Direct source select
All digital video processing
Enhanced picture in picture |
|
| Unique Features |
Long life > 60,000 hours
High altitude ready
Most accurate color reproduction with 68.7 billion colors
ISF C3 |
|
| Plasma Module |
|
|
| Screen Size (Diagonal) |
61" |
|
| Screen Aspect Ratio 16 to 9 |
16 to 9 |
|
| Active Screen Area (WxH) |
53.2 x 29.9 in, 1351 x 760 mm |
|
| Native Resolution |
WXGA 1365 x 768 |
|
| Pixel Pitch |
1.08 mm square |
|
| Color Processing |
68.7 billion colors, 4096 levels |
|
| Viewing Angle |
160° |
|
| Half life |
60,000 hours |
|
| Filter Type |
Anti-reflective |
|
| Signal Compatibility/Connnectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15.5 to 110.0 kHz auto, step scan |
|
| Vertical |
51 to120 Hz auto, step scan |
|
| Supported Video Standards |
PAL, SECAM, 3.58/4.43 NTSC, ATSC |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 525i, 525p, 540p, 625i, 625p, 720p, 1035i, 1080i,1080p |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA, WideVGA (848x480, 852x480), WideXGA (1360x768) |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
15-pin mini D-sub |
|
| RGB 2 (analog) |
5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input, selectable) |
|
| RGB 3 (digital) |
- |
|
| Video 1 |
Composite BNC x 1 |
|
| Video 2 |
Composite RCA x 2 |
|
| Video 3 |
S-Video 4-Pin DIN |
|
| HD Video 1 |
1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr) |
|
| HD Video 2 |
1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr) |
|
| HD Video 3 |
|
|
| HD Video 4 |
|
|
| Audio |
3 sets RCA stereo + external speaker jacks |
|
| Audio |
Internal amplifier, 9W x 2 output power |
|
| External Control |
RS232, IR(IR loopthrough) |
|
| RGB Loop-out |
- |
|
| Video Loop-out |
- |
|
| Electrical |
|
|
| Power Requirements |
120-240V 50/60 Hz |
|
| Power Consumption |
540W Typical |
|
| Standby Power |
0.9W |
|
| Mechnical |
|
|
| Dimensions (WxHxD) |
58.1 x 34.6 x 4.8 in, 1476 x 880 x 123mm |
|
| Net Weight |
134.2 lbs., 61.0 kg |
|
| Regulations |
Regulatory FCC Classs B, UL6500, CSA60065 |
|
| Fan Noise |
22dB |
|
| Environmental |
|
|
| Operating Temperature |
32 - 104 degrees F (0 - 40 degrees C) |
|
| Operating Humidity |
20 - 80% |
|
| Operating Altitude |
0 - 9180 feet (0 - 2800m) |
|
| Storage Temperature |
14 - 122 degrees F (-10 - 50 degrees C) |
|
| Storage Humidity |
10 - 90% |
|
| Storage Altitude |
0 to 9840 feet (0 - 3000m) |
|
| Warranty |
3 Years Parts & Labor/1 year plasma module |
|
| Additional Features |
|
|
| Split Screen / Picture-in-Picture |
Yes |
|
| Advanced AccuBlend |
Ensures detailed images when non-native resolution sources are connected to the projector. |
|
| Phospher Protection |
6 modes - A comprehensive set of built-in modes protects your screen from image retention. |
|
| Mass Area Superior Sampling (MASS) |
No |
|
| Enhanced Mass Area Superior Sampling |
|
|
| Capsulated Color Filter™ (CCF) technology |
CCF delivers realistic color reproduction creating the greatest color space when plotted on the C.I.E. Chromaticity chart. |
|
| AccuCrimson™ Filter technology |
Further enhances the effects of the CCF producing better reds and greens. |
|
| Advanced AccuCrimson™ Filter technology |
|
|
| Color Tune Technology |
Adjust individual colors without affecting white balance. |
|
| Gamma 12 |
Provides the highest color processing in a plasma display at 68.7 billion colors (4096 steps) resulting in increased detail never seen before... no matter what the viewing environment! |
|
| Closed captioning |
Yes |
|
| Matrix Capability |
No |
|
| Bonded Color Filter |
|
|
| In the Box |
AC Power Cord, User Manual, Remote Control, Batteries, Cable Clamps |
|
Compatibility
| Signal Compatibility/Connnectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15.5 to 110.0 kHz auto, step scan |
|
| Vertical |
51 to120 Hz auto, step scan |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA, WideVGA (848x480, 852x480), WideXGA (1360x768) |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
15-pin mini D-sub |
|
| RGB 2 (analog) |
5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input, selectable) |
|
| RGB 3 (digital) |
- |
|
| Video 1 |
Composite BNC x 1 |
|
| Video 2 |
Composite RCA x 2 |
|
| Video 3 |
S-Video 4-Pin DIN |
|
| HD Video 1 |
1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr) |
|
| HD Video 2 |
1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr) |
|
| HD Video 3 |
|
|
| HD Video 4 |
|
|
| Audio |
3 sets RCA stereo + external speaker jacks |
|
Warranty Information
3 Years Parts & Labor/1 year plasma module |
