Command awe-inspiring brilliance.

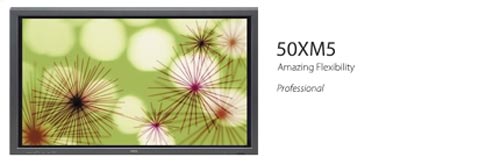

Enjoy crystal clear images with the 50XM5. With uncompromising image display, extraordinary picture quality and unsurpassed compatibility, the 50XM5 is the perfect size most commercial applications. From graphs, presentations and the internet to videos, dvds and HD, the 50XM5 becomes an integral part of your conference room.
- 50" diagonal
- 1365x768 WideXGA Resolution
- Direct source select
- Enhanced digital video processing
- Enhanced split screen
- Long life > 60,000 hours
Product Specifications
| Key Points |
WXGA resolution (1365x768)
Comprehensive input panel
Enhanced split screen |
|
| Unique Features |
Most accurate color reproduction with 68.7 billion colors
Long life > 60,000 hours
Highest number of built-in screensavers |
|
| Plasma Module |
|
|
| Screen Size (Diagonal) |
50" |
|
| Screen Aspect Ratio 16 to 9 |
16 to 9 |
|
| Active Screen Area (WxH) |
43.5 x 24.5 in, 1106 x 622 mm |
|
| Native Resolution |
WXGA 1365 x 768 |
|
| Pixel Pitch |
1.08 mm square |
|
| Color Processing |
68.7 billion colors, 4096 levels |
|
| Viewing Angle |
160° |
|
| Half life |
60,000 hours |
|
| Filter Type |
Anti-reflective |
|
| Signal Compatibility/Connnectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15.5 to 110.0 kHz auto, step scan |
|
| Vertical |
51 to120 Hz auto, step scan |
|
| Supported Video Standards |
PAL, SECAM, 3.58/4.43 NTSC, ATSC |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 525i, 525p, 540p, 625i, 625p, 720p, 1035i, 1080i,1080p |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA, WideVGA (848x480, 852x480), WideXGA (1360x768) |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
15-pin mini D-sub (common use with RGB out, selectable) |
|
| RGB 2 (analog) |
5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input, selectable) |
|
| RGB 3 (digital) |
24-pin DVI-D HDCP (EIA/CEA-861-A) compatible |
|
| Video 1 |
Composite BNC x 1 (common use with Video out, selectable) |
|
| Video 2 |
Composite RCA x 2 |
|
| Video 3 |
S-Video 4-Pin DIN |
|
| HD Video 1 |
1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr) |
|
| HD Video 2 |
1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr) (common use with 5BNC Y/Pb/Pr |
|
| HD Video 3 |
|
|
| HD Video 4 |
|
|
| Audio |
3 sets RCA stereo + external speaker jacks |
|
| Audio |
Internal amplifier, 9W x 2 output power |
|
| External Control |
RS232, IR(IR loopthrough) |
|
| RGB Loop-out |
Yes |
|
| Video Loop-out |
Yes |
|
| Electrical |
|
|
| Power Requirements |
120-240V 50/60 Hz |
|
| Power Consumption |
435W Typical |
|
| Standby Power |
0.9W |
|
| Mechnical |
|
|
| Dimensions (WxHxD) |
48.1 x 29.0 x 3.8 in, 1222 x 736 x 96mm |
|
| Net Weight |
97.9 lbs., 44.5 kg |
|
| Regulations |
FCC Class B, UL60950, CSA-E 60950, Argentine UL, NOM |
|
| Fan Noise |
20dB |
|
| Environmental |
|
|
| Operating Temperature |
32 - 104 degrees F (0 - 40 degrees C) |
|
| Operating Humidity |
20 - 80% |
|
| Operating Altitude |
0 - 9180 feet (0 - 2800m) |
|
| Storage Temperature |
14 - 122 degrees F (-10 - 50 degrees C) |
|
| Storage Humidity |
10 - 90% |
|
| Storage Altitude |
0 to 9840 feet (0 - 3000m) |
|
| Warranty |
1 Years Parts & Labor/1 year plasma module |
|
| Additional Features |
|
|
| Split Screen / Picture-in-Picture |
Yes |
|
| Advanced AccuBlend |
Ensures detailed images when non-native resolution sources are connected to the projector. |
|
| Phospher Protection |
6 modes - A comprehensive set of built-in modes protects your screen from image retention. |
|
| Mass Area Superior Sampling (MASS) |
No |
|
| Enhanced Mass Area Superior Sampling |
|
|
| Capsulated Color FilterT (CCF) technology |
CCF delivers realistic color reproduction creating the greatest color space when plotted on the C.I.E. Chromaticity chart. |
|
| AccuCrimsonT Filter technology |
Further enhances the effects of the CCF producing better reds and greens. |
|
| Advanced AccuCrimsonT Filter technology |
|
|
| Color Tune Technology |
Adjust individual colors without affecting white balance. |
|
| Gamma 12 |
Provides the highest color processing in a plasma display at 68.7 billion colors (4096 steps) resulting in increased detail never seen before... no matter what the viewing environment! |
|
| Closed captioning |
Yes |
|
| Matrix Capability |
2X2, 3X3, 4X4, 5x5 |
|
| In the Box |
AC Power Cord, User Manual, Remote Control, Batteries, Cable Clamps |
|
| Bonded Color Filter |
|
|
Compatibility
| Signal Compatibility/Connnectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15.5 to 110.0 kHz auto, step scan |
|
| Vertical |
51 to120 Hz auto, step scan |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA, WideVGA (848x480, 852x480), WideXGA (1360x768) |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
15-pin mini D-sub (common use with RGB out, selectable) |
|
| RGB 2 (analog) |
5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input, selectable) |
|
| RGB 3 (digital) |
24-pin DVI-D HDCP (EIA/CEA-861-A) compatible |
|
| Video 1 |
Composite BNC x 1 (common use with Video out, selectable) |
|
| Video 2 |
Composite RCA x 2 |
|
| Video 3 |
S-Video 4-Pin DIN |
|
| HD Video 1 |
1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr) |
|
| HD Video 2 |
1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr) (common use with 5BNC Y/Pb/Pr |
|
| HD Video 3 |
|
|
| HD Video 4 |
|
|
| Audio |
3 sets RCA stereo + external speaker jacks |
|
Warranty Information
1 Years Parts & Labor/1 year plasma module |
