Make every seat the best seat in the house.

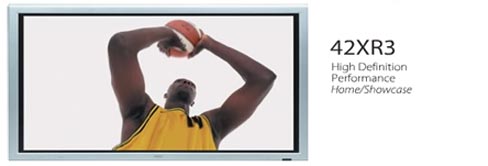

Connect into your digital home with NEC's 42XR3 plasma display that delivers brilliant, vivid, larger than life images. Take advantage of the superior contrast and brightness, no matter what the viewing environment.
- 42" diagonal
- XGA 1024x768 native resolution
- Direct source select
- HD panel resolution
- Excellent bright room contrast/brightness
- 60,000 hour half life
Product Specifications
| Key Points |
Direct source select
HD panel resolution
Excellent bright room contrast/brightness |
|
| Unique Features |
Long life > 60,000 hours
High altitude ready
Most accurate color reproduction with 68.7 billion colors |
|
| Plasma Module |
|
|
| Screen Size (Diagonal) |
42" |
|
| Screen Aspect Ratio 16 to 9 |
16 to 9 |
|
| Active Screen Area (WxH) |
36.3 x 20.4 in, 921 x 518 mm |
|
| Native Resolution |
XGA 1024 x 768 |
|
| Pixel Pitch |
1.08 mm square |
|
| Color Processing |
68.7 billion colors, 4096 levels |
|
| Viewing Angle |
160° |
|
| Half life |
60,000 hours |
|
| Filter Type |
Anti-reflective |
|
| Signal Compatibility/Connnectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15.5 to 110.0 kHz auto, step scan |
|
| Vertical |
51 to120 Hz auto, step scan |
|
| Supported Video Standards |
PAL, SECAM, 3.58/4.43 NTSC, ATSC |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 525i, 525p, 540p, 625i, 625p, 720p, 1035i, 1080i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA, WideVGA (848x480, 852x480), WideXGA (1360x768) |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
15-pin mini D-sub |
|
| RGB 2 (analog) |
5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input, selectable) |
|
| RGB 3 (digital) |
24-pin DVI-D HDCP (EIA/CEA-861-A) compatible |
|
| Video 1 |
Composite BNC x 1 |
|
| Video 2 |
Composite RCA x 2 |
|
| Video 3 |
S-Video 4-Pin DIN |
|
| HD Video 1 |
1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr) |
|
| HD Video 2 |
1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr) (common use with 5BNC Y/Pb/Pr |
|
| HD Video 3 |
|
|
| HD Video 4 |
|
|
| Audio |
3 sets RCA stereo + external speaker jacks |
|
| Audio |
Internal amplifier, 8W x 2 output power |
|
| External Control |
RS232, IR |
|
| RGB Loop-out |
- |
|
| Video Loop-out |
- |
|
| Electrical |
|
|
| Power Requirements |
120V 50/60 Hz |
|
| Power Consumption |
300W Typical, 5.2 Amp Maximum |
|
| Standby Power |
0.9W |
|
| Mechnical |
|
|
| Dimensions (WxHxD) |
40.1 x 24.0 x 3.5 in, 1018 x 610 x 89mm |
|
| Net Weight |
65.0 lbs., 29.5 kg |
|
| Regulations |
Regulatory FCC Classs B, UL6500, CSA60065 |
|
| Fan Noise |
22dB |
|
| Environmental |
|
|
| Operating Temperature |
32 - 104 degrees F (0 - 40 degrees C) |
|
| Operating Humidity |
20 - 80% |
|
| Operating Altitude |
0 - 9180 feet (0 - 2800m) |
|
| Storage Temperature |
14 - 122 degrees F (-10 - 50 degrees C) |
|
| Storage Humidity |
10 - 90% |
|
| Storage Altitude |
0 to 9840 feet (0 - 3000m) |
|
| Warranty |
3 Years Parts & Labor/1 year plasma module |
|
| Additional Features |
|
|
| Split Screen / Picture-in-Picture |
No |
|
| Advanced AccuBlend |
Ensures detailed images when non-native resolution sources are connected to the projector. |
|
| Phospher Protection |
6 modes - A comprehensive set of built-in modes protects your screen from image retention. |
|
| Mass Area Superior Sampling (MASS) |
Eliminates jagged lines and corrects color bleeds to create clear and defined images. |
|
| Enhanced Mass Area Superior Sampling |
|
|
| Capsulated Color Filter™ (CCF) technology |
CCF delivers realistic color reproduction creating the greatest color space when plotted on the C.I.E. Chromaticity chart. |
|
| AccuCrimson™ Filter technology |
Further enhances the effects of the CCF producing better reds and greens. |
|
| Advanced AccuCrimson™ Filter technology |
|
|
| Color Tune Technology |
Adjust individual colors without affecting white balance. |
|
| Gamma 12 |
Provides the highest color processing in a plasma display at 68.7 billion colors (4096 steps) resulting in increased detail never seen before... no matter what the viewing environment! |
|
| Closed captioning |
Yes |
|
| Matrix Capability |
No |
|
| In the Box |
AC Power Cord, User Manual, Remote Control, Batteries, Cable Clamps |
|
| Bonded Color Filter |
|
|
Compatibility
| Signal Compatibility/Connnectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15.5 to 110.0 kHz auto, step scan |
|
| Vertical |
51 to120 Hz auto, step scan |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA, WideVGA (848x480, 852x480), WideXGA (1360x768) |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
15-pin mini D-sub |
|
| RGB 2 (analog) |
5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input, selectable) |
|
| RGB 3 (digital) |
24-pin DVI-D HDCP (EIA/CEA-861-A) compatible |
|
| Video 1 |
Composite BNC x 1 |
|
| Video 2 |
Composite RCA x 2 |
|
| Video 3 |
S-Video 4-Pin DIN |
|
| HD Video 1 |
1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr) |
|
| HD Video 2 |
1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr) (common use with 5BNC Y/Pb/Pr |
|
| HD Video 3 |
|
|
| HD Video 4 |
|
|
| Audio |
3 sets RCA stereo + external speaker jacks |
|
Warranty Information
3 Years Parts & Labor/1 year plasma module |
