Command awe-inspiring brilliance.

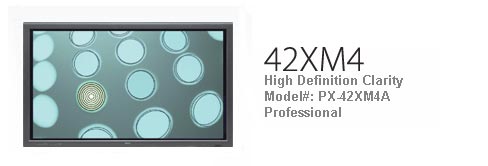

The 42XM4 panel is completely redesigned.Enhanced contrast, brightness and sharpness allow the 42XM4 to display the clearest images ever.From graphs, presentations and the internet to videos, dvds and HD, the 42XM4 becomes an integral part of your conference room.
- 42" diagonal
- 1024x768 XGA Resolution
- Direct source select
- Accurate color reproduction
- Enhanced split screen
- Long life > 60,000 hours
Product Specifications
| Key Points |
XGA resolution (1024x768)
Comprehensive input panel
Accurate color reproduction |
|
| Unique Features |
Most accurate color reproduction with 68.7 billion colors
Long life > 60,000 hours
Highest number of built-in screensavers |
|
| Plasma Module |
style=" border-collapse:collapse;" |
|
| Screen Size (Diagonal) |
42" |
|
| Screen Aspect Ratio 16 to 9 |
16 to 9 |
|
| Active Screen Area (WxH) |
36.1 x 20.4 in, 918 x 518 mm |
|
| Native Resolution |
XGA 1024 x 768 |
|
| Pixel Pitch |
1.08 mm square |
|
| Color Processing |
68.7 billion colors, 4096 levels |
|
| Viewing Angle |
160° |
|
| Half life |
60,000 hours |
|
| Filter Type |
Anti-reflective |
|
| Signal Compatibility/Connnectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15.5 to 110.0 kHz auto, step scan |
|
| Vertical |
50 to120 Hz auto, step scan |
|
| Supported Video Standards |
PAL, SECAM, 3.58/4.43 NTSC, ATSC |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 525i, 525p, 540p, 625i, 625p, 720p, 1035i, 1080i,1080p |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA, WideVGA (848x480, 852x480), WideXGA (1360x768) |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
15-pin mini D-sub (common use with RGB out, selectable) |
|
| RGB 2 (analog) |
5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input, selectable) |
|
| RGB 3 (digital) |
24-pin DVI-D HDCP (EIA/CEA-861-A) compatible |
|
| Video 1 |
Composite BNC x 1 (common use with Video out, selectable) |
|
| Video 2 |
Composite RCA x 2 |
|
| Video 3 |
S-Video 4-Pin DIN |
|
| HD Video 1 |
1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr) |
|
| HD Video 2 |
1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr) (common use with 5BNC Y/Pb/Pr |
|
| HD Video 3 |
|
|
| HD Video 4 |
|
|
| Audio |
3 sets RCA stereo + external speaker jacks |
|
| Audio |
Internal amplifier, 8W x 2 output power |
|
| External Control |
RS232, IR(IR loopthrough) |
|
| RGB Loop-out |
Yes |
|
| Video Loop-out |
Yes |
|
| Electrical |
|
|
| Power Requirements |
120-240V 50/60 Hz |
|
| Power Consumption |
- |
|
| Standby Power |
0.9W |
|
| Mechnical |
|
|
| Dimensions (WxHxD) |
40.2 x 24.0 x 3.9 in, 1022 x 610 x 98mm |
|
| Net Weight |
- |
|
| Regulations |
FCC Class B, UL60950, CSA-E 60950, Argentine UL, NOM |
|
| Fan Noise |
- |
|
| Environmental |
|
|
| Operating Temperature |
32 - 104 degrees F (0 - 40 degrees C) |
|
| Operating Humidity |
20 - 80% |
|
| Operating Altitude |
- |
|
| Storage Temperature |
- |
|
| Storage Humidity |
- |
|
| Storage Altitude |
- |
|
| Warranty |
1 Years Parts & Labor/1 year plasma module |
|
| Additional Features |
|
|
| Split Screen / Picture-in-Picture |
Yes |
|
| Advanced AccuBlend |
Ensures detailed images when non-native resolution sources are connected to the projector. |
|
| Phospher Protection |
6 modes - A comprehensive set of built-in modes protects your screen from image retention. |
|
| Mass Area Superior Sampling (MASS) |
No |
|
| Enhanced Mass Area Superior Sampling |
|
|
| Capsulated Color FilterT (CCF) technology |
No |
|
| AccuCrimsonT Filter technology |
No |
|
| Advanced AccuCrimsonT Filter technology |
|
|
| Color Tune Technology |
Adjust individual colors without affecting white balance. |
|
| Gamma 12 |
Provides the highest color processing in a plasma display at 68.7 billion colors (4096 steps) resulting in increased detail never seen before... no matter what the viewing environment! |
|
| Closed captioning |
Yes |
|
| Matrix Capability |
2X2, 3X3, 4X4, 5x5 |
|
| In the Box |
AC Power Cord, User Manual, Remote Control, Batteries, Cable Clamps |
|
| Bonded Color Filter |
|
Compatibility
| Signal Compatibility/Connnectivity |
|
|
| Scan Rate |
style=" border-collapse:collapse;" |
|
| Horizontal |
15.5 to 110.0 kHz auto, step scan |
|
| Vertical |
50 to120 Hz auto, step scan |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA, WideVGA (848x480, 852x480), WideXGA (1360x768) |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
15-pin mini D-sub (common use with RGB out, selectable) |
|
| RGB 2 (analog) |
5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input, selectable) |
|
| RGB 3 (digital) |
24-pin DVI-D HDCP (EIA/CEA-861-A) compatible |
|
| Video 1 |
Composite BNC x 1 (common use with Video out, selectable) |
|
| Video 2 |
Composite RCA x 2 |
|
| Video 3 |
S-Video 4-Pin DIN |
|
| HD Video 1 |
1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr) |
|
| HD Video 2 |
1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr) (common use with 5BNC Y/Pb/Pr |
|
| HD Video 3 |
|
|
| HD Video 4 |
|
|
| Audio |
3 sets RCA stereo + external speaker jacks |
|
Warranty Information
| 1 Years Parts & Labor/1 year plasma module |
|
|
