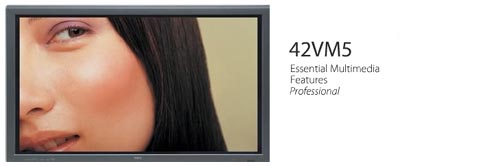

Command awe-inspiring brilliance.
The PlasmaSync 42VM5 is designed to provide a solution for information display applications including digital signage, advertising, point-of-purchase, merchandising and kiosks. The anti-reflective filter and portrait orientation allow for installation flexibility in a variety of environments.
- 42" diagonal
- WVGA 853 x 480 native resolution
- Programmable timer
- Best in class image quality
- Comprehensive input panel
- Anti-reflective filter
Product Specifications
| Key Points |
Best in class image quality
Comprehensive input panel
High brightness/contrast |
|
| Unique Features |
Most accurate color reproduction with 68.7 billion colors
Long life > 60,000 hours
Highest number of built-in screensavers |
|
| Plasma Module |
|
|
| Screen Size (Diagonal) |
42" |
|
| Screen Aspect Ratio 16 to 9 |
16 to 9 |
|
| Active Screen Area (WxH) |
36.3 x 20.4 in, 921 x 518 mm |
|
| Native Resolution |
WVGA 853 x 480 |
|
| Pixel Pitch |
1.08 mm square |
|
| Color Processing |
68.7 billion colors, 4096 levels |
|
| Viewing Angle |
160° |
|
| Half life |
60,000 hours |
|
| Filter Type |
Anti-reflective |
|
| Signal Compatibility/Connnectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15.5 to 110.0 kHz auto, step scan |
|
| Vertical |
51 to120 Hz auto, step scan |
|
| Supported Video Standards |
PAL, SECAM, 3.58/4.43 NTSC, ATSC |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 525i, 525p, 540p, 625i, 625p, 720p, 1035i, 1080i |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA, WideVGA (848x480, 852x480), WideXGA (1360x768) |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
15-pin mini D-sub (common use with RGB out, selectable) |
|
| RGB 2 (analog) |
5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input, selectable) |
|
| RGB 3 (digital) |
24-pin DVI-D HDCP (EIA/CEA-861-A) compatible |
|
| Video 1 |
Composite BNC x 1 (common use with Video out, selectable) |
|
| Video 2 |
Composite RCA x 2 |
|
| Video 3 |
S-Video 4-Pin DIN |
|
| HD Video 1 |
1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr) |
|
| HD Video 2 |
1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr) (common use with 5BNC Y/Pb/Pr |
|
| HD Video 3 |
|
|
| HD Video 4 |
|
|
| Audio |
3 sets RCA stereo + external speaker jacks |
|
| Audio |
Internal amplifier, 8W x 2 output power |
|
| External Control |
RS232, IR |
|
| RGB Loop-out |
Yes |
|
| Video Loop-out |
Yes |
|
| Electrical |
|
|
| Power Requirements |
120V 50/60 Hz |
|
| Power Consumption |
270W Typical, 4.6 Amp Maximum |
|
| Standby Power |
0.9W |
|
| Mechnical |
|
|
| Dimensions (WxHxD) |
40.1 x 24.0 x 3.5 in, 1018 x 610 x 89mm |
|
| Net Weight |
63.0 lbs., 28.5 kg |
|
| Regulations |
FCC Class A, UL1950, CSA950 |
|
| Fan Noise |
Fanless |
|
| Environmental |
|
|
| Operating Temperature |
32 - 104 degrees F (0 - 40 degrees C) |
|
| Operating Humidity |
20 - 80% |
|
| Operating Altitude |
0 - 9180 feet (0 - 2800m) |
|
| Storage Temperature |
14 - 122 degrees F (-10 - 50 degrees C) |
|
| Storage Humidity |
10 - 90% |
|
| Storage Altitude |
0 to 9840 feet (0 - 3000m) |
|
| Warranty |
1 Years Parts & Labor/1 year plasma module |
|
| Additional Features |
|
|
| Split Screen / Picture-in-Picture |
No |
|
| Advanced AccuBlend |
Ensures detailed images when non-native resolution sources are connected to the projector. |
|
| Phospher Protection |
6 modes - A comprehensive set of built-in modes protects your screen from image retention. |
|
| Mass Area Superior Sampling (MASS) |
Eliminates jagged lines and corrects color bleeds to create clear and defined images. |
|
| Enhanced Mass Area Superior Sampling |
|
|
| Capsulated Color Filter™ (CCF) technology |
CCF delivers realistic color reproduction creating the greatest color space when plotted on the C.I.E. Chromaticity chart. |
|
| AccuCrimson™ Filter technology |
Further enhances the effects of the CCF producing better reds and greens. |
|
| Advanced AccuCrimson™ Filter technology |
|
|
| Color Tune Technology |
Adjust individual colors without affecting white balance. |
|
| Gamma 12 |
Provides the highest color processing in a plasma display at 68.7 billion colors (4096 steps) resulting in increased detail never seen before... no matter what the viewing environment! |
|
| Closed captioning |
Yes |
|
| Matrix Capability |
2X2, 3X3, 4X4, 5x5 |
|
| Bonded Color Filter |
|
|
| In the Box |
AC Power Cord, User Manual, Remote Control, Batteries, Cable Clamps |
|
Compatibility
| Signal Compatibility/Connnectivity |
|
|
| Scan Rate |
|
|
| Horizontal |
15.5 to 110.0 kHz auto, step scan |
|
| Vertical |
51 to120 Hz auto, step scan |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, UXGA, WideVGA (848x480, 852x480), WideXGA (1360x768) |
|
| Macintosh Compatibility |
Yes |
|
| Input/Output Terminals |
|
|
| RGB 1 (analog) |
15-pin mini D-sub (common use with RGB out, selectable) |
|
| RGB 2 (analog) |
5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input, selectable) |
|
| RGB 3 (digital) |
24-pin DVI-D HDCP (EIA/CEA-861-A) compatible |
|
| Video 1 |
Composite BNC x 1 (common use with Video out, selectable) |
|
| Video 2 |
Composite RCA x 2 |
|
| Video 3 |
S-Video 4-Pin DIN |
|
| HD Video 1 |
1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr) |
|
| HD Video 2 |
1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr) (common use with 5BNC Y/Pb/Pr |
|
| HD Video 3 |
|
|
| HD Video 4 |
|
|
| Audio |
3 sets RCA stereo + external speaker jacks |
|
Warranty Information
1 Years Parts & Labor/1 year plasma module
|
